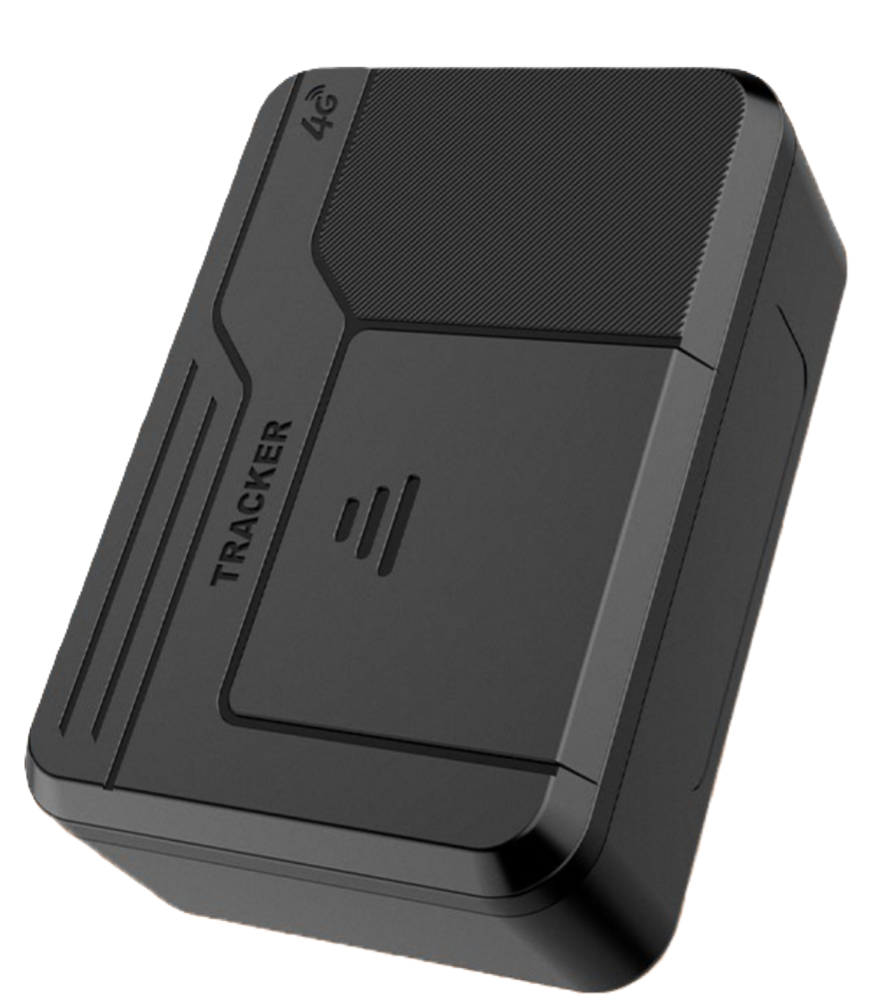

GPS Tracker ES600HC01

Features

4G Connectivity

Supports 2G/4G dual-network, FDD-LTE/TDD-LTE multi-band, adapted to Southeast Asia/Africa 4G network

Location Tracking

GPS+BEIDOU dual-mode positioning, WiFi/LBS auxiliary positioning

GPS positioning accuracy <10m

Playback and Download

Supports historical route playback, fleet management and data upload

Fast Start

GPS cold start in 33s

Alarms

Supports vibration alarm, power-off alarm, overspeed alarm

Parameters Setting

Supports third-party inspection and custom parameter setting

Battery

Built-in 2200mAh lithium battery, supports up to 3-year wireless positioning

Power Supply

Working voltage DC 3V

Certificate

CE, FCC, Rohs, Reach, Intertek

Customization

Customized LOGO

Communication Protocol

Supports GPRS data upload

Specification parameters

Size

60(L)*45(W)*23(H)mm

Weight

63g

Operating temperature

-25~+-80℃

Built-in battery

2200mAh

working voltage

3V DC

Hardware specifications

Positioning accuracy

GPS<10m

Web standards

FDD  LTE:B1/B3/B5/B8

TDD  LTE:B34/B38/B39/B40/B41

(Mainly supports 4G networks in Southeast Asia and Africa)

Positioning time

cold start 33s

GSM antenna

BD&GPS dual-mode ceramic antenna

Communication four band antenna

Communication chip

ASR 1602

Positioning chip

AT6558R

GPS deviation

-143dBm

Tracking sensitivity

-159dBm

Software Specification Description

Parameter settings

support

Third-party inspection

support

GPRS upload

support

Overspeed alarm

support

Flee management

support

Historical route

support
