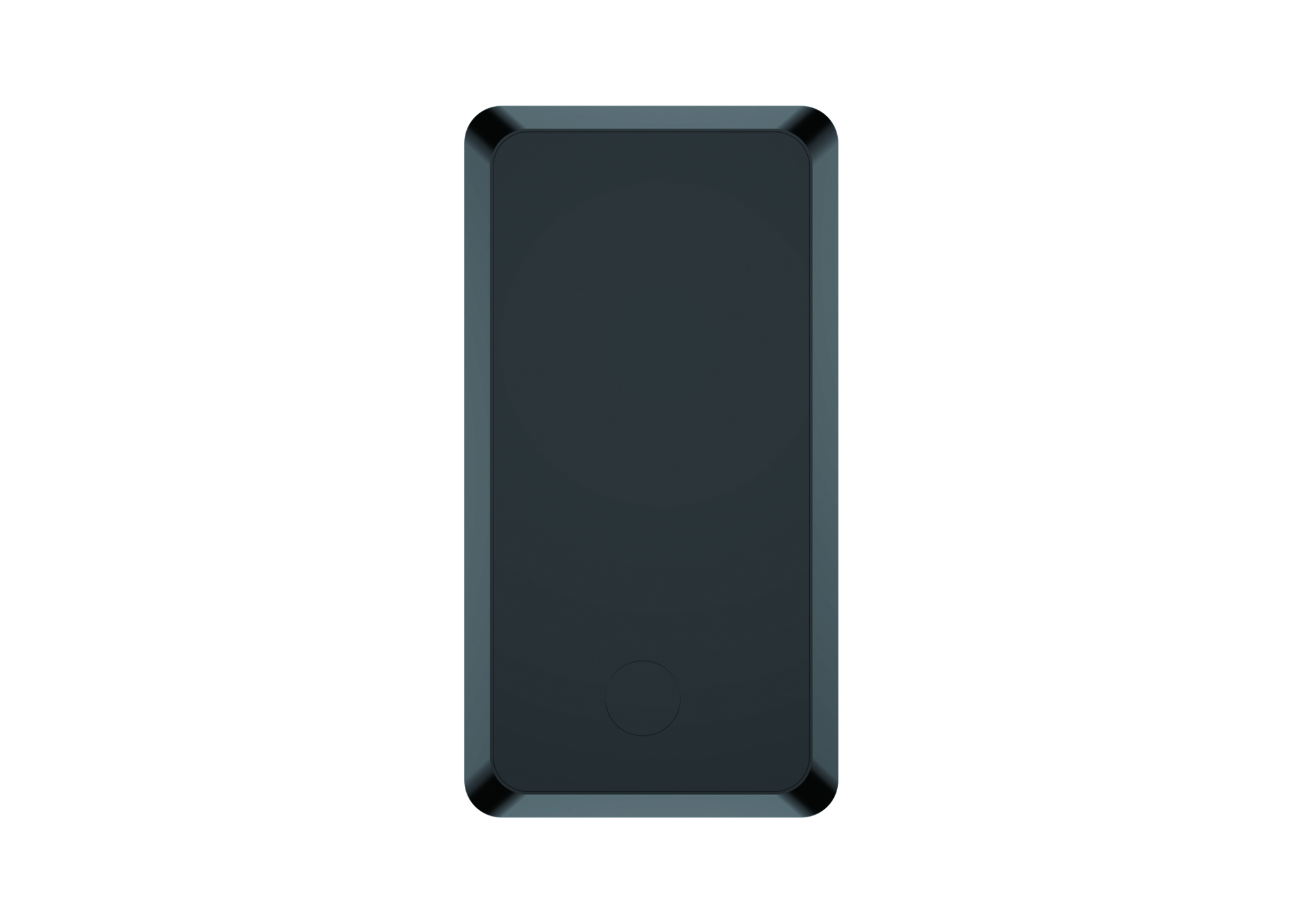

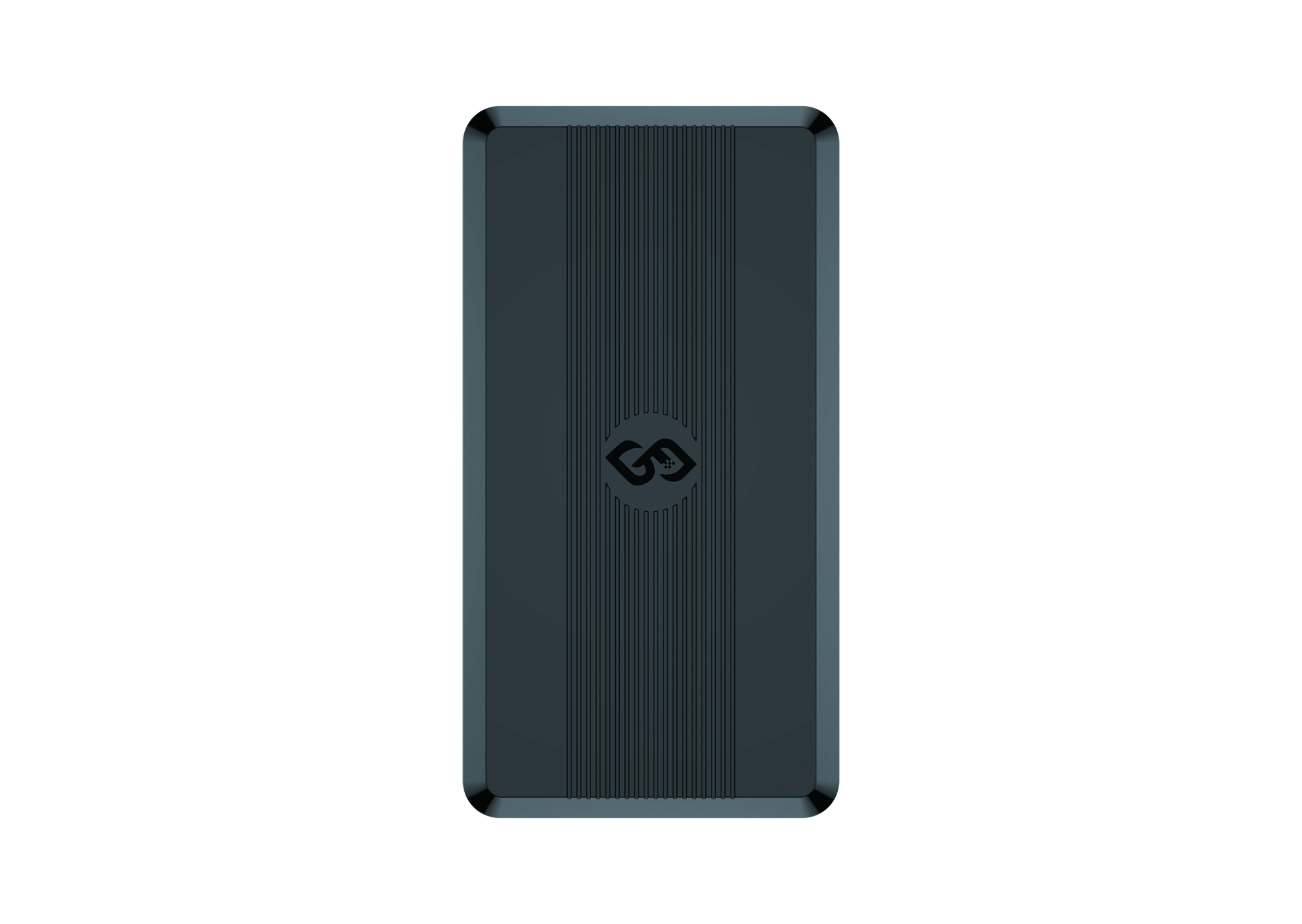

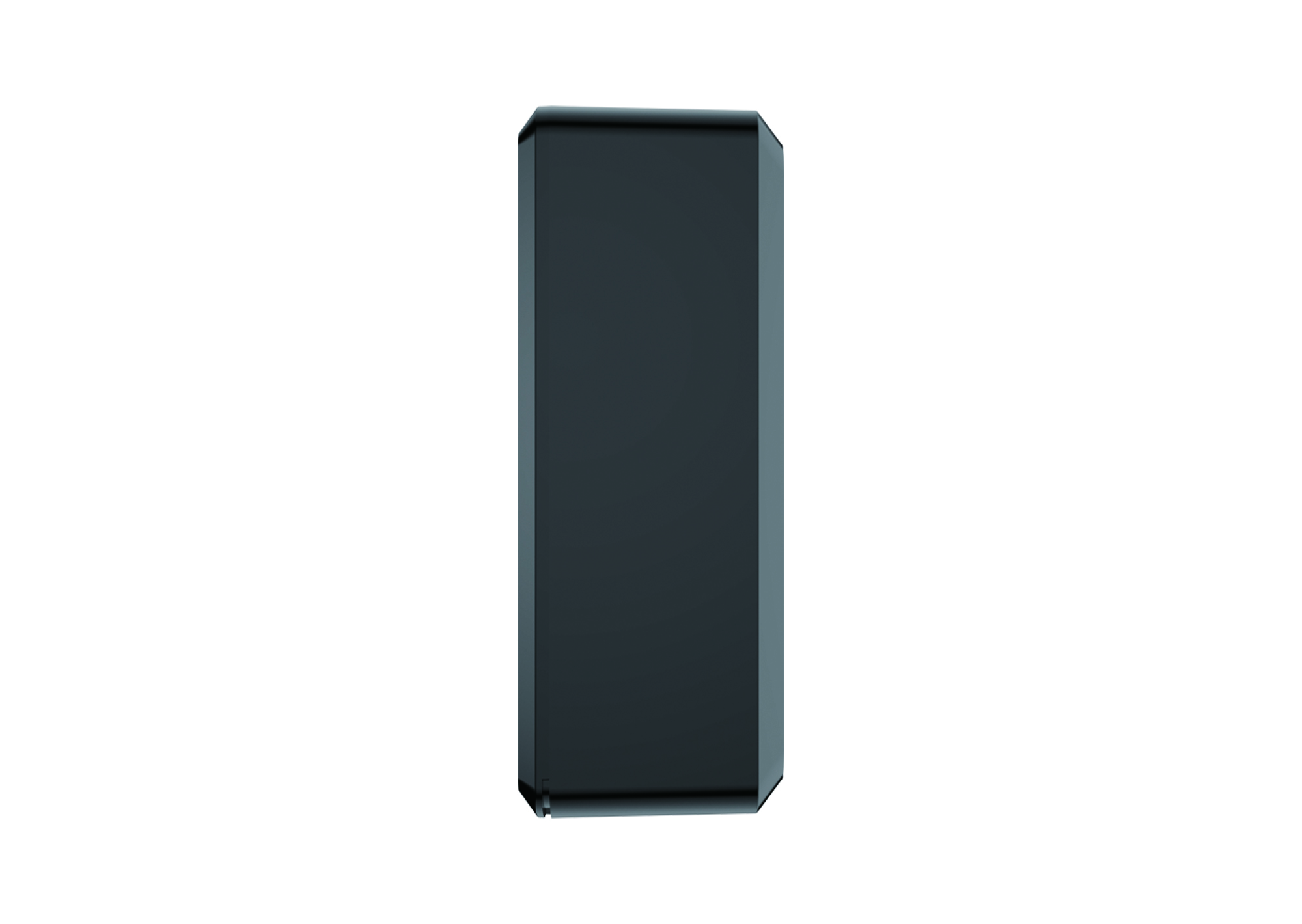

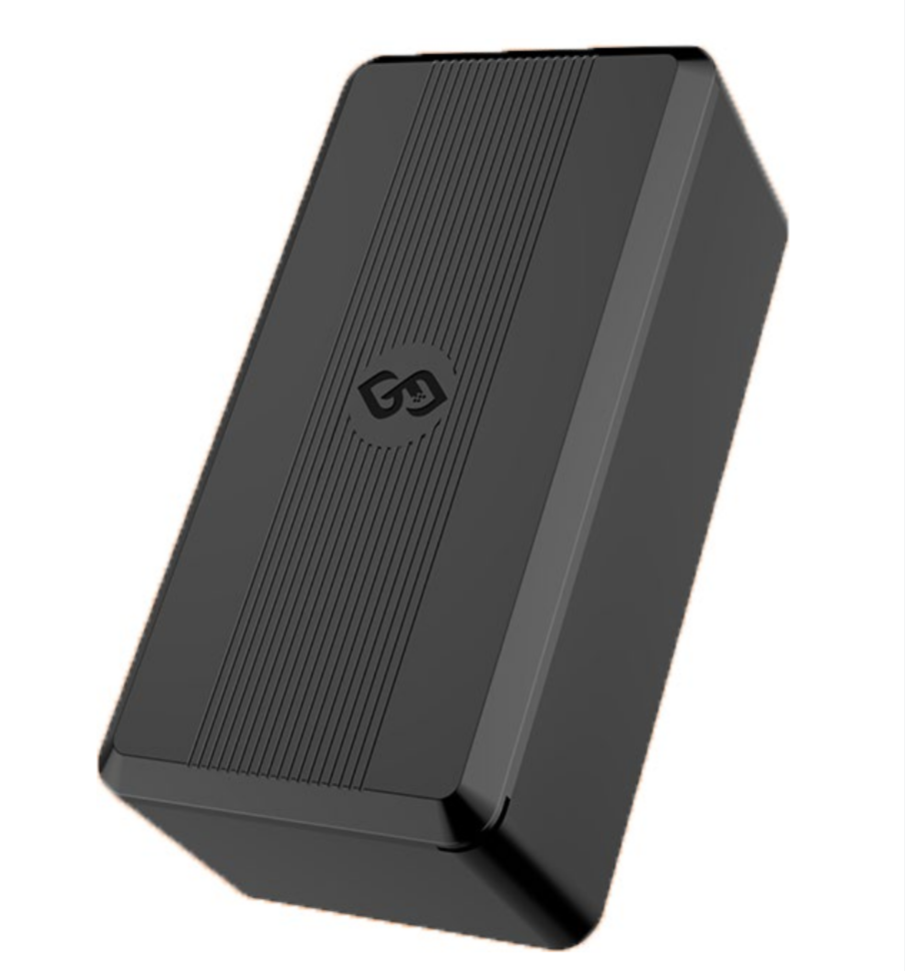

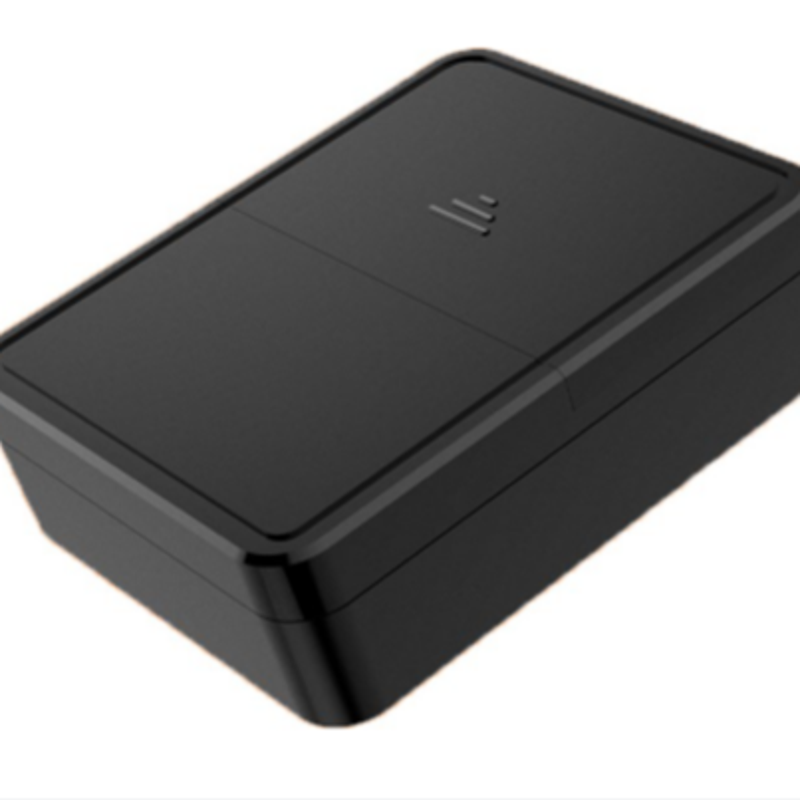

GPS Tracker ES600HC02

Features

4G Connectivity

Supports 2G/4G dual-network & CAT1+GSM dual-mode communication

GSM covers 850/900/1800/1900 four frequency bands, adapted to Southeast Asia & Africa 2G networks

Location Tracking

GPS+BDS dual-mode positioning, with WIFI/LBS auxiliary positioning

GPS positioning accuracy ＜10m

Playback and Download

Supports historical route playback and GPRS data upload, suitable for fleet management scenarios

Fast Start

GPS cold start in 33s

Alarms

Supports vibration alarm, power-off alarm and overspeed alarm for real-time abnormal reminders

Parameters Setting

Supports custom terminal parameter setting and is compatible with third-party inspection function

Battery

Built-in 4200mAh lithium battery

1-day battery life in fixed-point tracking mode, standby time up to 1080 days

Power Supply

DC 3V working voltage with stable power supply

Certificate

CE, FCC, Rohs, Reach, Intertek

Customization

Customized LOGO

Communication Protocol

Supports GPRS communication protocol for stable data upload

Specification parameters

Size

78(L)*42(W)*30(H)mm

Weight

81g

Operating temperature

-25~+-80℃

Built-in battery

4200mAh

working voltage

3V DC

Hardware specifications

Positioning accuracy

GPS<10m

GSM frequency band

GSM850/GSM900/DCS1800/PCS1900

(Mainly supports 2G in Southeast Asia and 2G in Africa)

Positioning time

cold start 33s

GSM antenna

BD&GPS dual-mode ceramic antenna

Communication four band antenna

Communication chip

MT2502DV/B

Positioning chip

AT6558R

GPS deviation

-160dBm

Tracking sensitivity

-162dBm

Software Specification Description

Parameter settings

support

Third-party inspection

support

GPRS upload

support

Overspeed alarm

support

Flee management

support

Historical route

support
