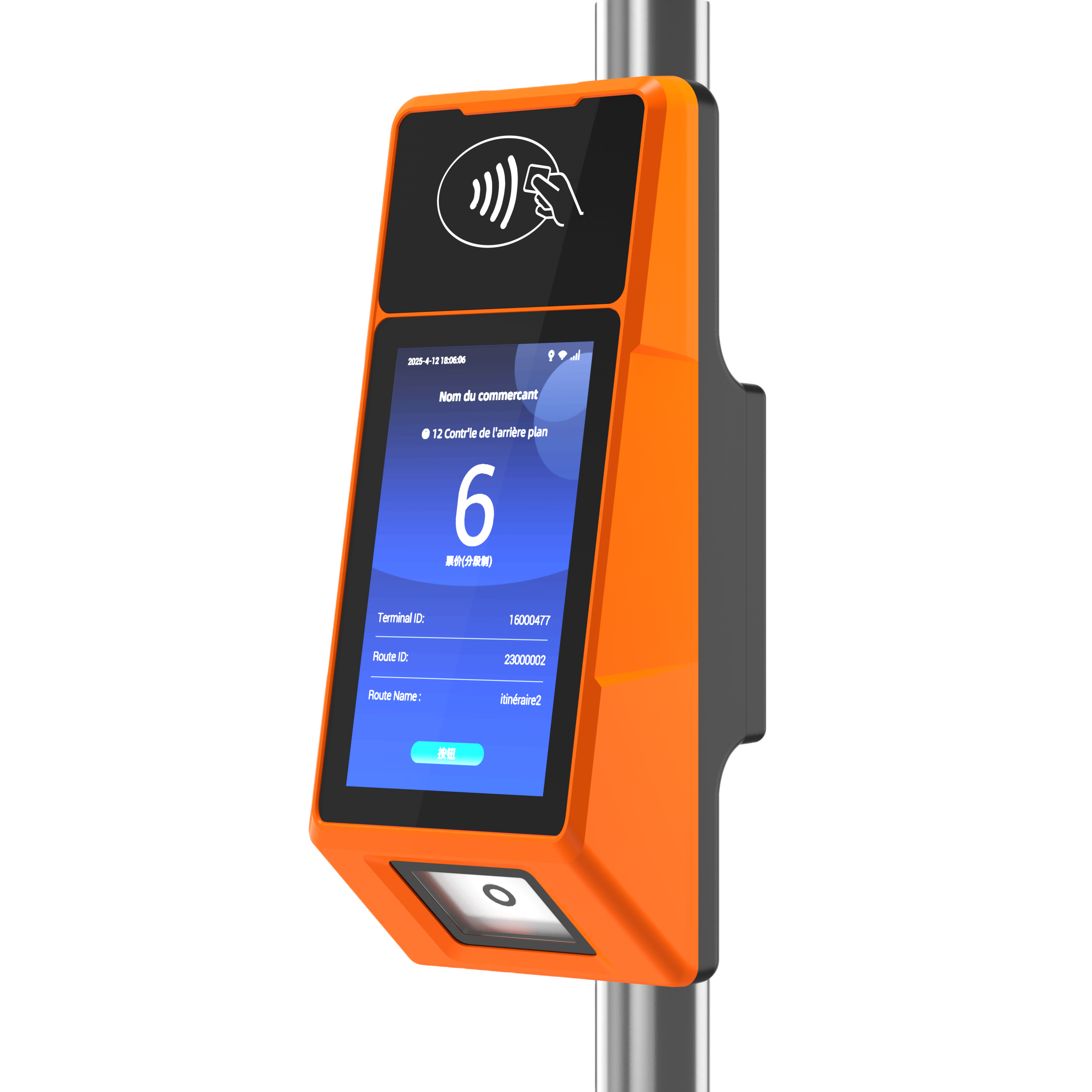

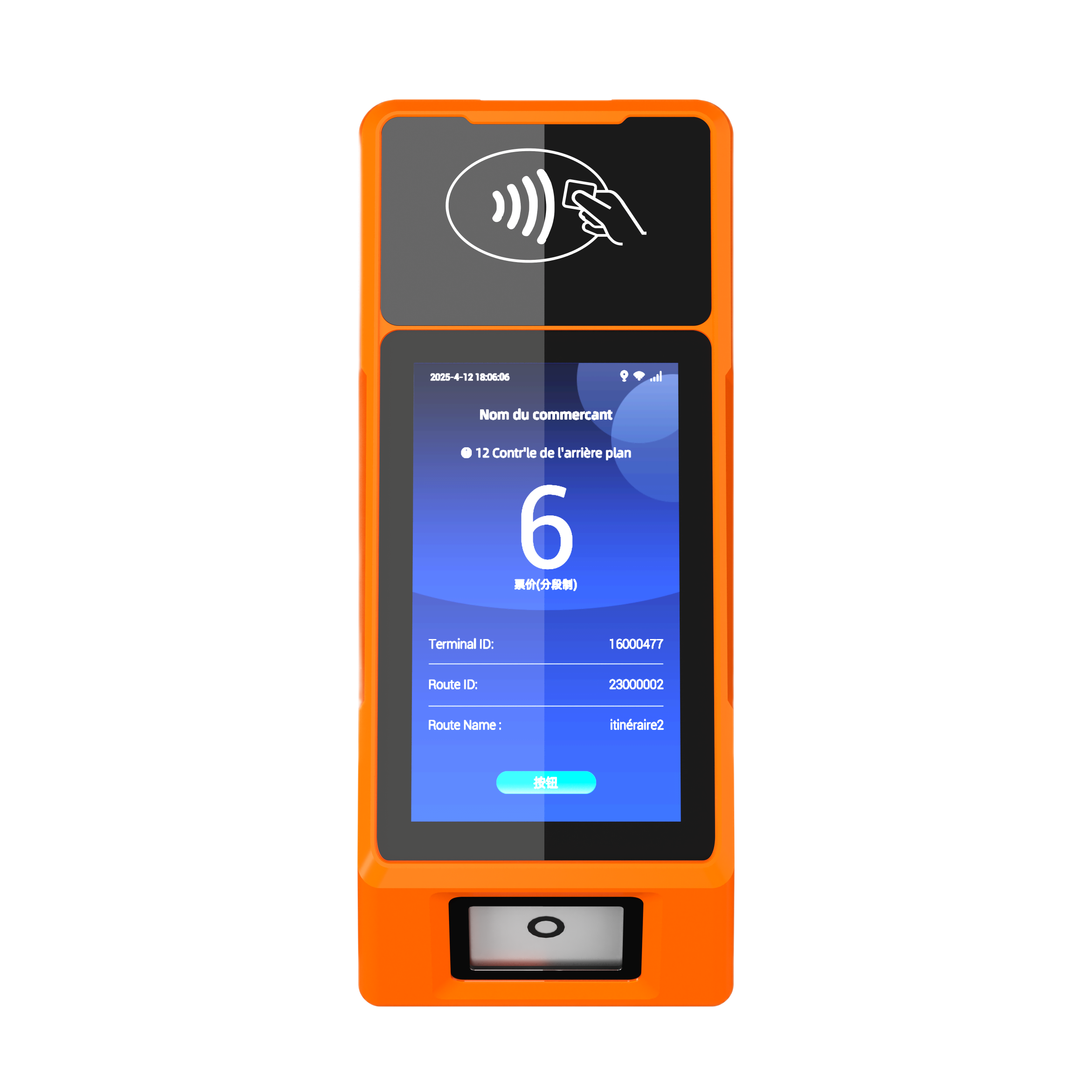

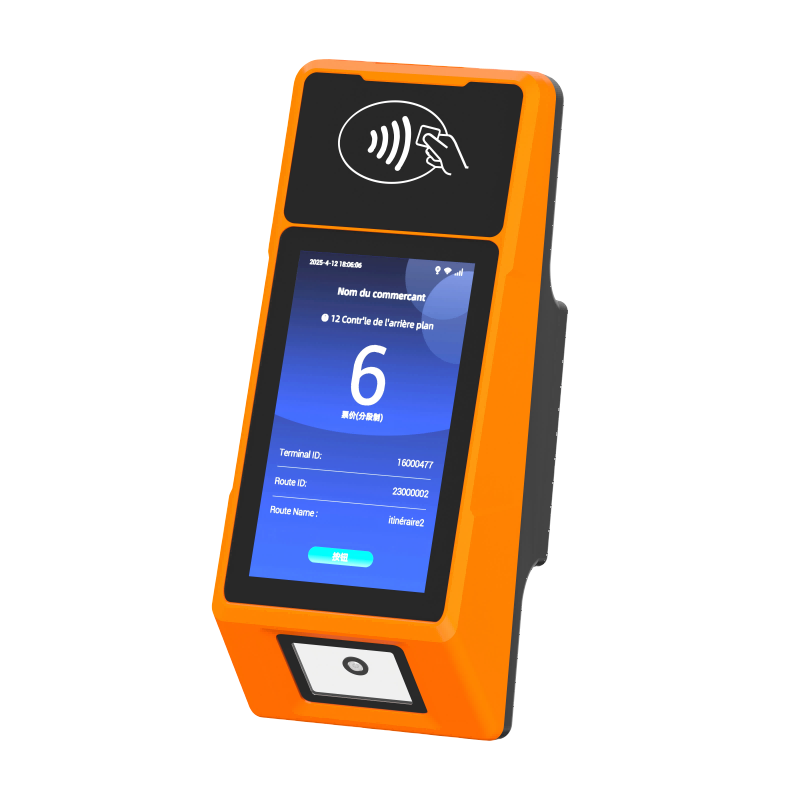

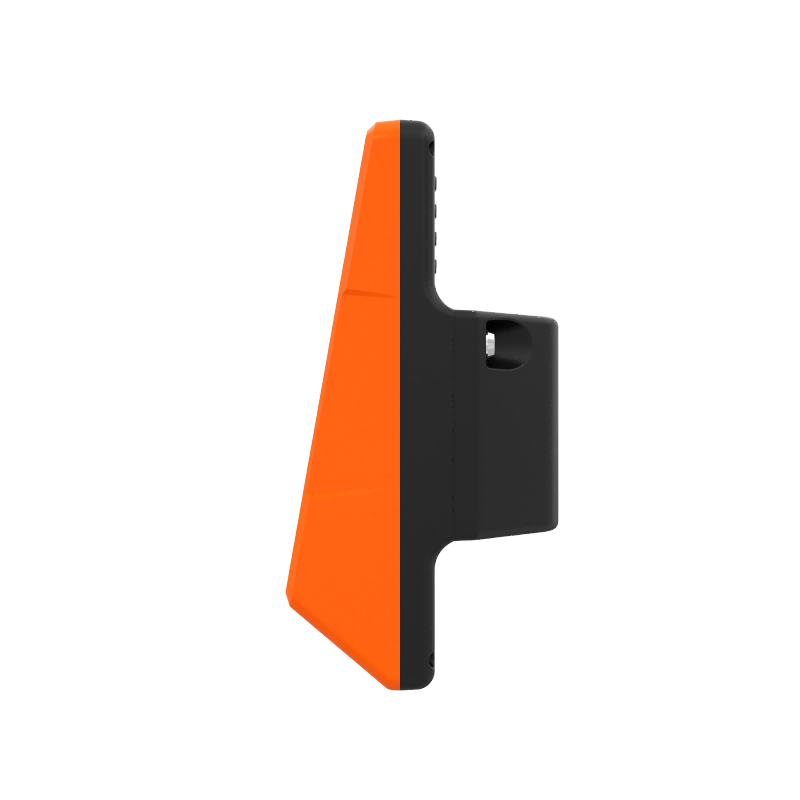

Android Bus Validator M10A

Item

Description

OS

Android 13

Processor

ARM Cortex-A53, Quad Core

Memory

2GB RAM + 32GB ROM

SD

Support Micro SD(TF)card, up to 256GB

Display

Front Display: 5.5 inch TFT LCD, 720*1280 pixels

Back Display: Three 8-seg led display

LED

Red/Green Led Indicator

Keyboard

UP/Down/Cancel/Enter

Contactless Reader

NFC Contactless, ISO/IEC 14443 Type A&B, MIFARE, DESFire, Sony FeliCa, ISO18092, Calypso

Operating frequency 13.56MHz

Contactless Transaction speed

≤0.3S

Contactless Reading Distance

≤100mm

PSAM card slot

Standard 8 PSAM card slot, ISO7816 Compatible and Support PPS

Real-time clock

Embedded real-time clock, margin ≤5s/month, support manual or automatic correct

Buzzer

Support

Voice

Support voice notification with adjustable volume

Support WAV/MP3 voice file

Scanner

2D: QR Code, Micro QR,PDF417,Data Matrix

1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI Plessey

Connectivity

1*power interface

1*RS232 & 1*RS485

1*USB type A (USB Host), for upgrade

1*USB type C, OTG

1*Ethernet, 100Mbps

8*PSAM card slots

2*SIM card slots

Wireless

2G: GSM

3G: WCDMA

4G: TD-LTE/FDD-LTE

WiFi (Optional): IEEE 802.11a/b/g/n

Bluetooth (Optional) :  v5.2/v4.2/2.1

Embedded antenna

GPS

(External antenna) support A-GPS, GLONASS, BeiDou

Power indicator

DC 9V~36V wide voltage, it has functions such as reverse connection, automatic protection for overvoltage and overcurrent, and automatic recovery

IP level

IP65

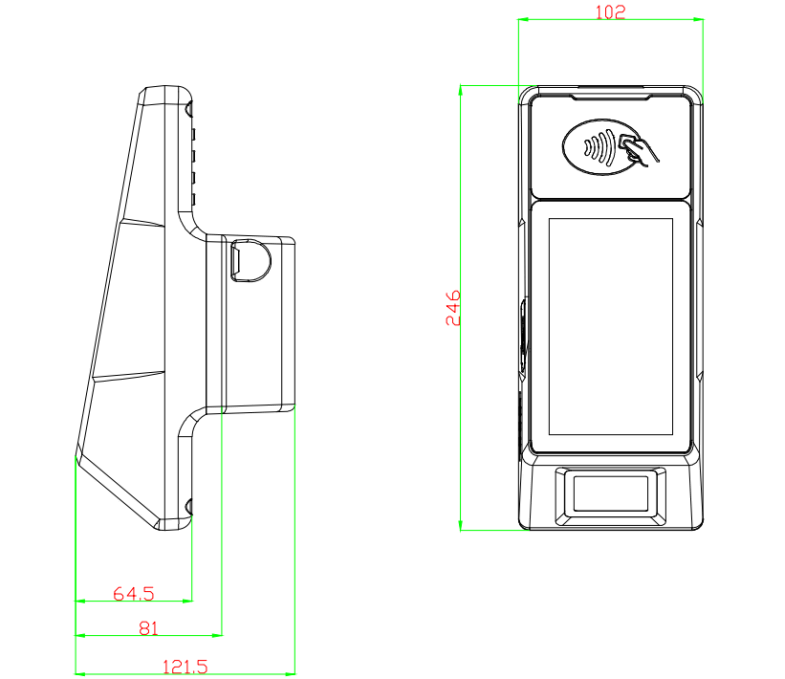

Dimension

(L)246mm*(H)102mm*(W)81mm

Environment

Operating temperature: -20℃~70℃

Storage temperature: -40℃~80℃

Storage humidity: 60℃，95%RH

Operating humidity: 50℃，5%~95RH
