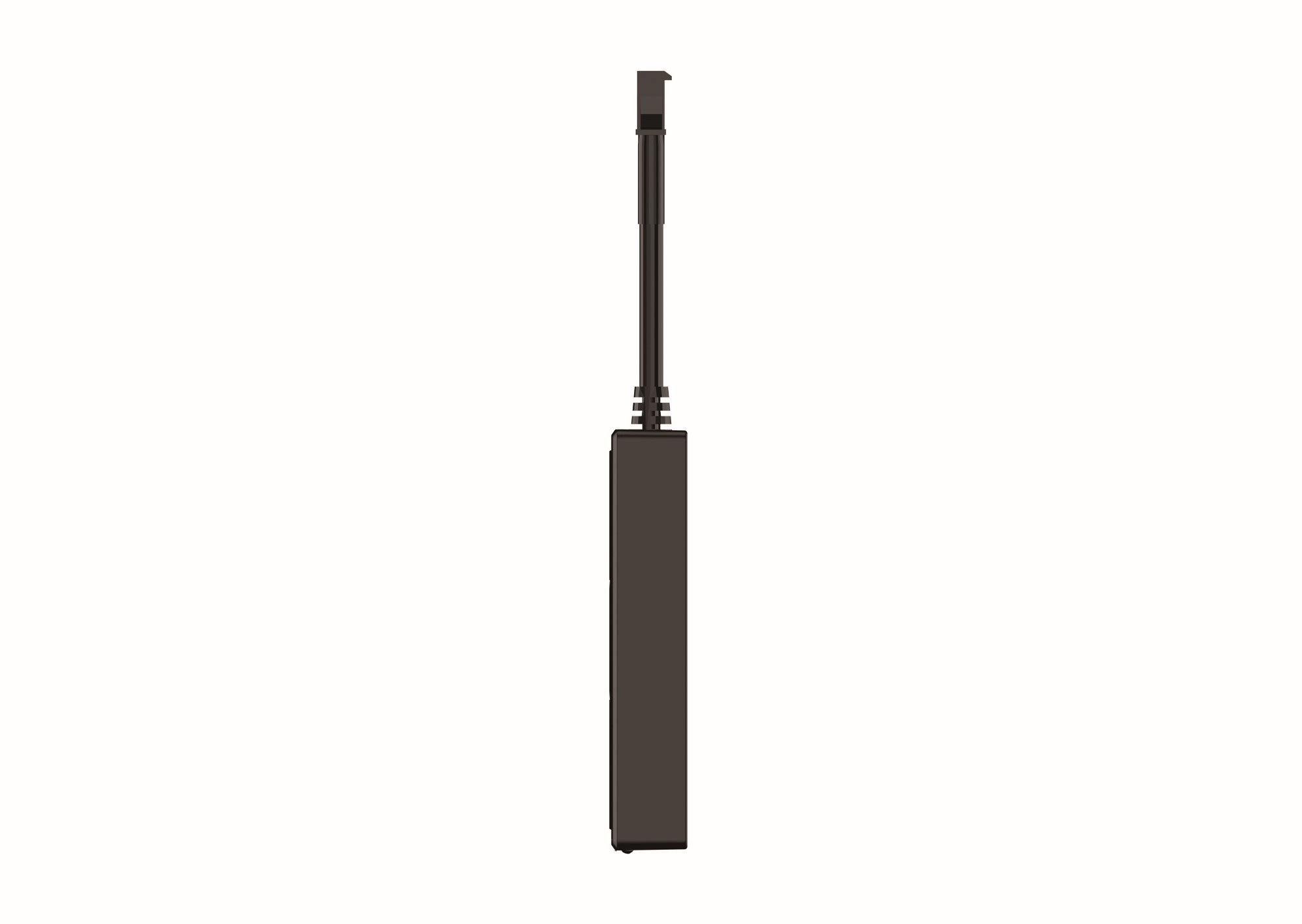

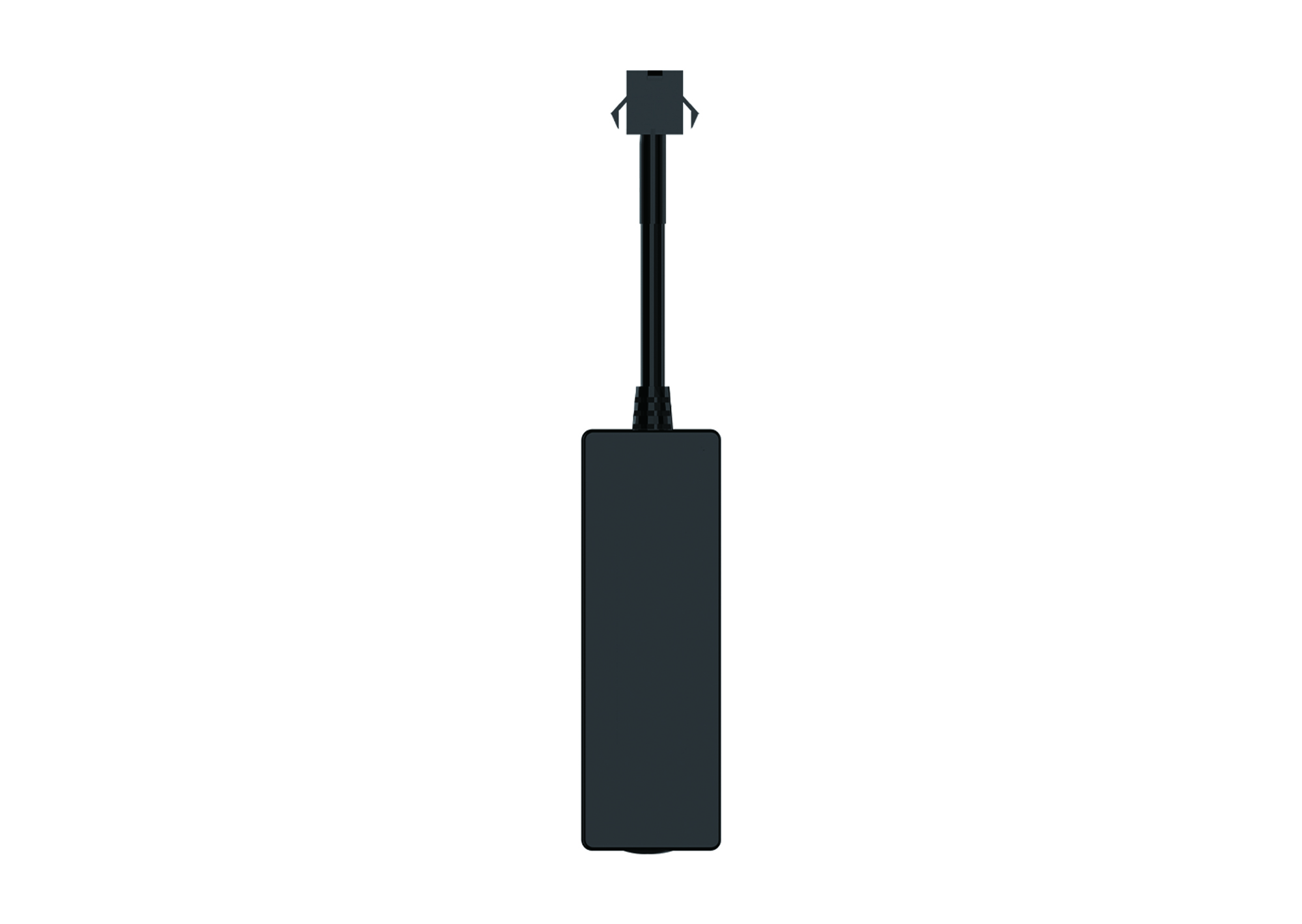

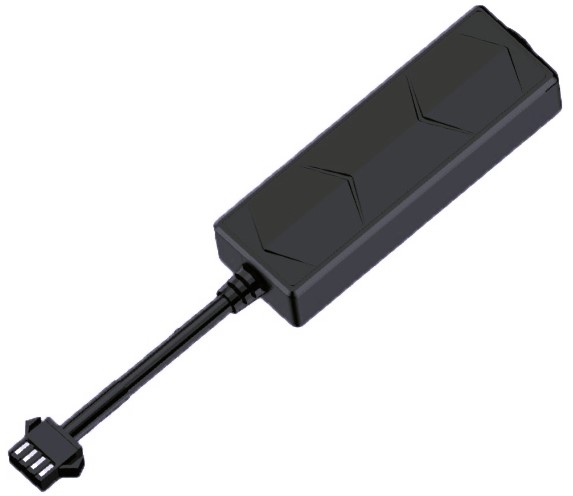

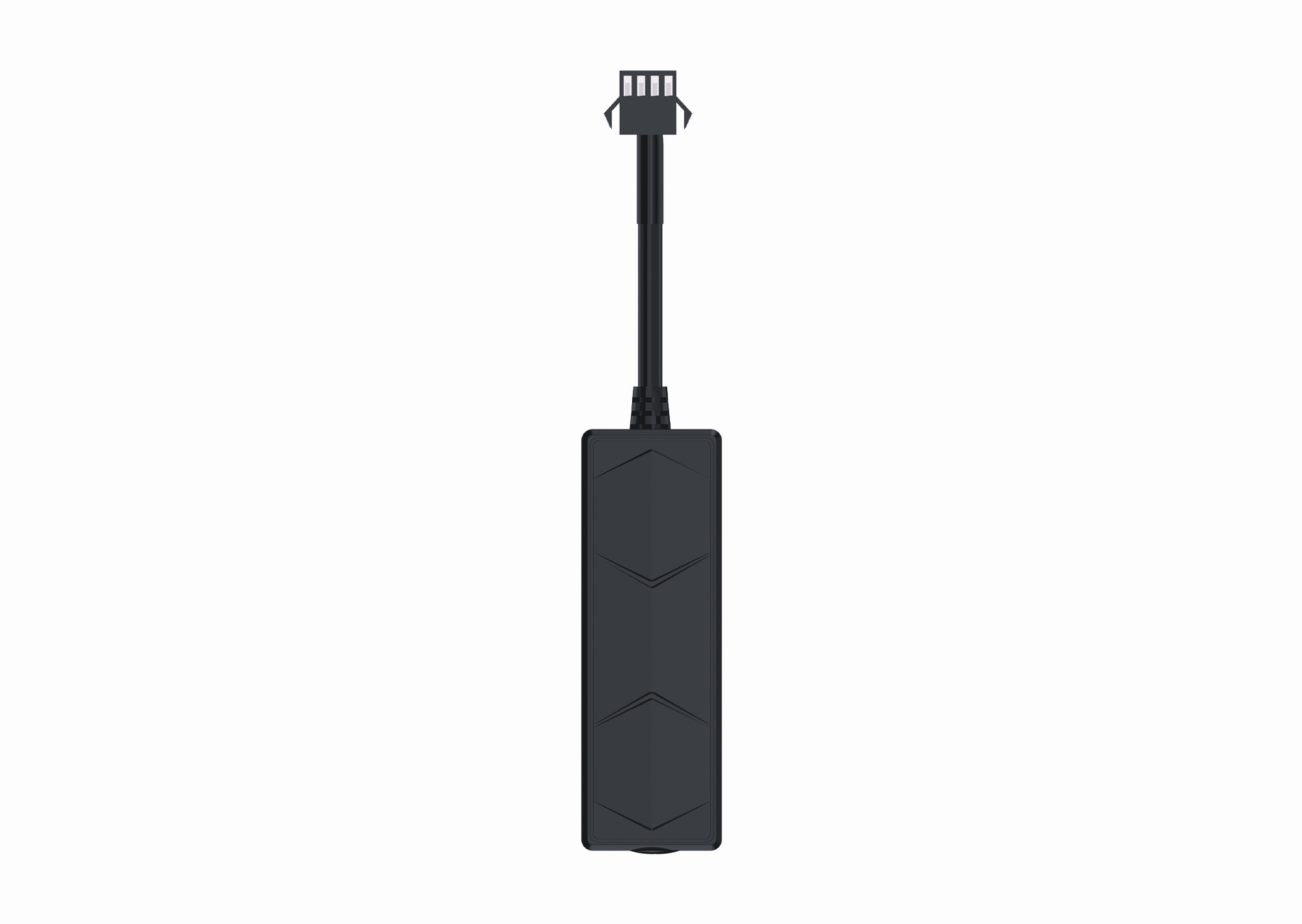

GPS Tracker ES600KA01

Features

2G Connectivity

Supports 2G network with GSM 850/900/1800/1900 four bands, mainly adapted to Africa 2G network

Location Tracking

GPS+BDS dual-mode positioning, GPS positioning accuracy ＜10m

Playback and Download

Supports regular tracking and GPRS data upload, with real-time tracking function

Fast Start

GPS cold start positioning in 33s, fast positioning response

Alarms

Supports power-off alarm, vibration alarm and overspeed alarm for real-time abnormal alerts

Parameters Setting

Supports custom parameter setting and third-party inspection function

Battery

Built-in 3.7V/55mAh lithium battery

Power Supply

DC 9-90V wide working voltage with stable power supply

Certificate

Certified by CE, FCC, Rohs, Reach and intertek

Customization

Supports LOGO customization for personalized needs

Communication Protocol

Supports GPRS communication protocol for stable data upload

Specification parameters

Size

75(L)*25(W)*13(H)mm

Weight

56g

Operating temperature

-25~+-80℃

Built-in battery

3.7V/55mAh lithium battery

working voltage

9-90V DC

Hardware specifications

Positioning accuracy

GPS<10m

GSM frequency band

G5M:850/900/1800/1900

(Mainly supporting 2G in Africa)

GSM antenna

BD&GPS dual-mode ceramic antenna

GPS quad band antenna

Communication chip

RDA8955

Positioning chip

A6558R

GPS sensitivity

-143dBm

Tracking sensitivity

-159dBm

Positioning time

Cold start 33s

Software Specification Description

OTA update

support

Parameter settings

support

GPRS upload

support

Third-party inspection

support

Power outage alarm

support

Regular tracking

support

ACC detection

support

Vibration alarm

support

Overspeed alarm

support

Remote control

support

Remote upgrade

support
