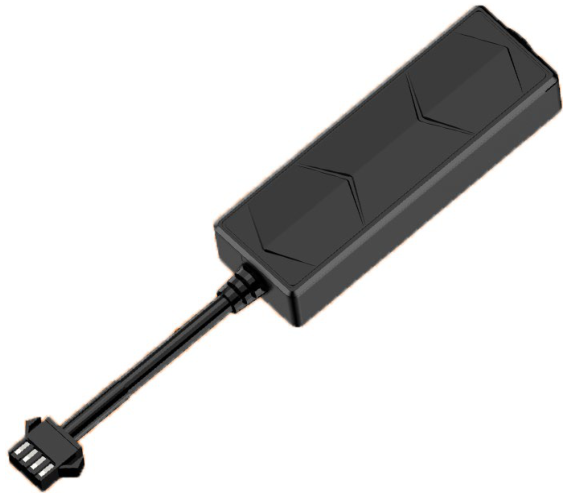

GPS Tracker ES600KA02

Features

4G Connectivity

Supports 4G network with multi-band LTE, compatible with Southeast Asia and Africa 4G networks

Location Tracking

GPS+BDS dual-mode positioning, GPS positioning accuracy ＜10m

Playback and Download

Supports regular tracking and GPRS data upload, with real-time tracking function

Fast Start

GPS cold start positioning in 33s, fast positioning response

Alarms

Supports power-off alarm, vibration alarm and overspeed alarm for real-time abnormal alerts

Parameters Setting

Supports custom parameter setting and third-party inspection function

Battery

Built-in 55mAh lithium battery

Power Supply

DC 9-90V wide working voltage with stable power supply

Certificate

Certified by CE, FCC, Rohs, Reach and intertek

Customization

Supports LOGO customization for personalized needs

Communication Protocol

Supports GPRS communication protocol for stable data upload

Specification parameters

Size

75(L)*25(W)*13(H)mm

Weight

56g

Operating temperature

-25~+-80℃

Built-in battery

55mAh

working voltage

9-90V wide voltage

Hardware specifications

Positioning accuracy

GPS<10m

Web standards

China Mobile 307R

LTE B1B3/B5/88/B34/638/B39/B40/B41

Luat AIR78OEEU

LTE B1/B3/65B7/B8/B20/B28(Mainly supports 4G in Southeast Asia and Africa)

Positioning time

Cold start 33s

GSM antenna

BD&GPS dual-mode ceramic antenna

GPS quad band antenna

Communication chip

ASR1602/Moxin EC716E

Positioning chip

CC1161W

GPS sensitivity

-145dBm

Tracking sensitivity

-163dBm

Software Specification Description

OTA update

support

Parameter settings

support

GPRS upload

support

Third-party inspection

support

Power outage alarm

support

Regular tracking

support

ACC detection

support

Vibration alarm

support

Overspeed alarm

support

Remote control

support

Remote upgrade

support
