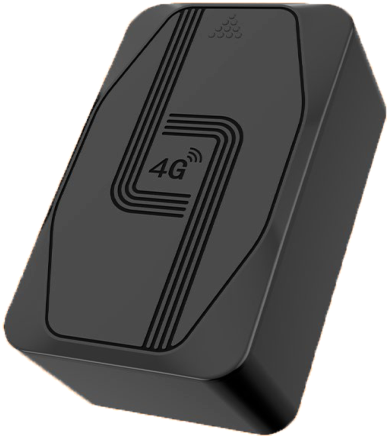

GPS Tracker ES600HC05

Features

4G Connectivity

Supports 2G/4G dual-network & CAT1+GSM dual-mode communication; multi-band LTE/GSM, compatible with Southeast Asia, Africa, South America 2G/4G networks

Location Tracking

GPS+BDS dual-mode positioning, with LBS/AGNSS auxiliary positioning; GPS positioning accuracy ＜10m

Playback and Download

Supports historical route playback and GPRS data upload, applicable for fleet management

Fast Start

GPS cold start positioning in 33s, fast positioning response

Alarms

Supports vibration alarm, power-off alarm and overspeed alarm for real-time abnormal alerts, light sensor anti-removal alarm

Parameters Setting

Supports custom parameter setting and third-party inspection function

Battery

Built-in 4200mAh lithium battery, standby time up to 1080 days in fixed-point tracking mode

Power Supply

DC 3V working voltage with stable power supply

Certificate

Certified by CE, FCC, Rohs, Reach and intertek

Customization

Supports LOGO customization for personalized needs

Communication Protocol

Supports GPRS communication protocol for stable data upload

Specification parameters

Size

78(L)*42(W)*30(H)mm

Weight

81g

Operating temperature

-25~+-80℃

Built-in battery

4200mAh

working voltage

3V DC

Hardware specifications

Positioning accuracy

GPS<10m

GSM frequency band

850/900/1800/1900

GSM 900/1800

Web standards

AS LTE:B1/B2/B3/B4/B5/B7/B8/B28/B66

EU LTE:B1/B3/B5/B7/B8/B20

(Mainly supports Southeast Asia 4G, Southeast Asia 2G+4G, Africa 2G, etc.)

Africa 2G+4G, South America 4G, South America 2G+4G)

GSM antenna

BD&GPS dual-mode ceramic antenna

Communication four band antenna

Communication chip

MT2502DV/B

Positioning chip

AT6558R

GPS sensitivity

-160dBm

Tracking sensitivity

-162dBm

Positioning time

Cold start 33s

Software Specification Description

Parameter settings

support

Third-party inspection

support

GPRS upload

support

Overspeed alarm

support

Flee management

support

Historical route

support
