AI Dash Cam ES500-603

The ES500-603 is a comprehensive automotive active safety product integrating satellite positioning, video surveillance, and active safety functions. This product meets the needs of fleet monitoring, management, driving safety, and standardized driving behavior. Based on advanced deep learning technology, its active safety functions—Advanced Driver Assistance Systems (ADAS), Driver Monitoring Systems (DMS), and facial recognition algorithms—can be applied to complex driving scenarios to improve traffic safety and efficiency and enhance the overall user experience. The integration of artificial intelligence technology into the vehicle driving process can further regulate the driver's safe driving behavior.

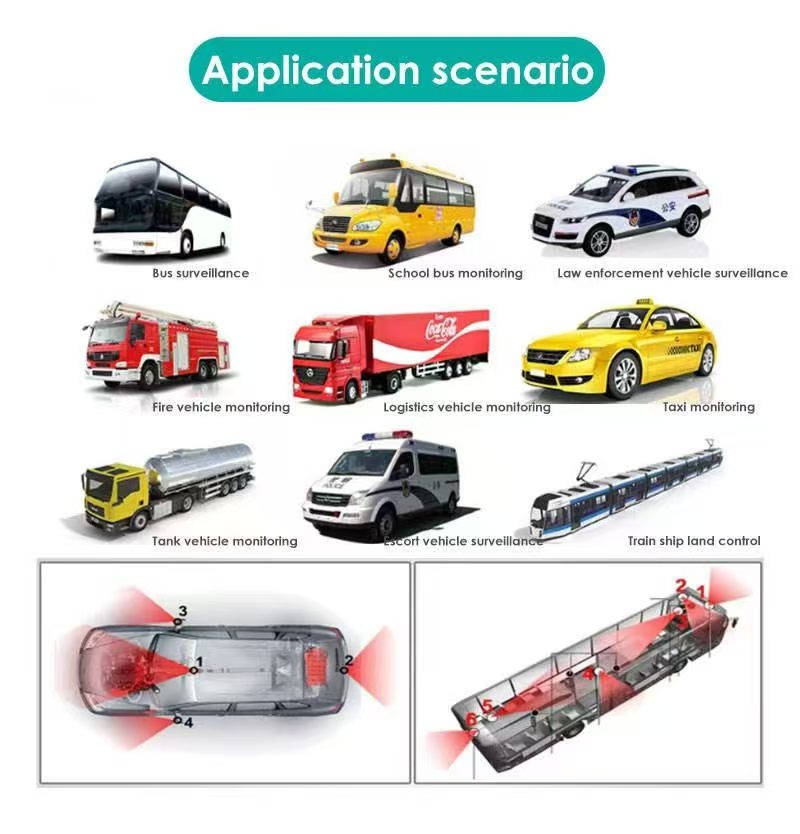

This product supports national standards protocols such as JT/T808, JT/T905, and JT/T1078, meeting the needs of video surveillance management and standardized driving behavior for ride-hailing, taxi, and logistics fleets.

Product Consulting

A^-A⁺

Product Overview Product Consulting

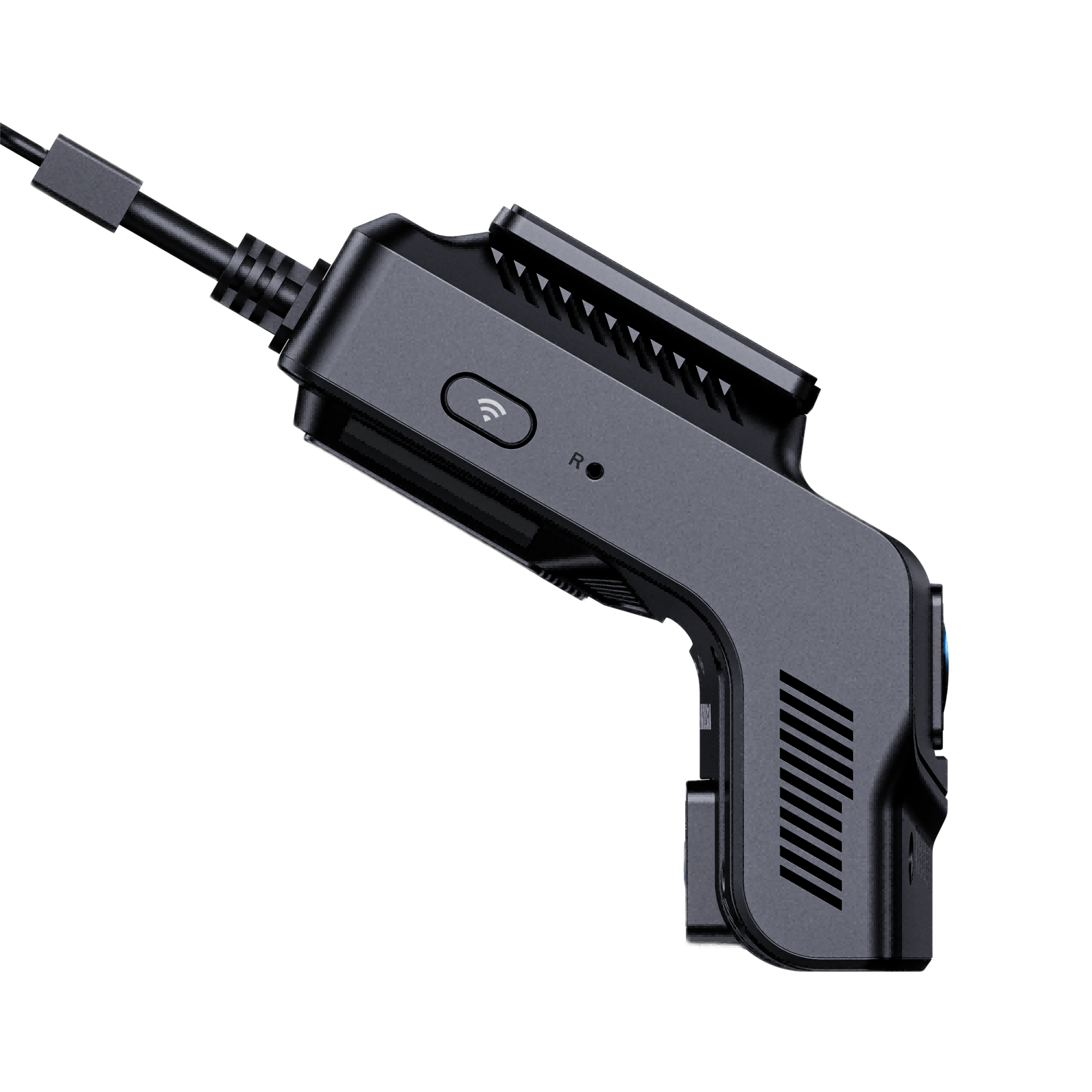

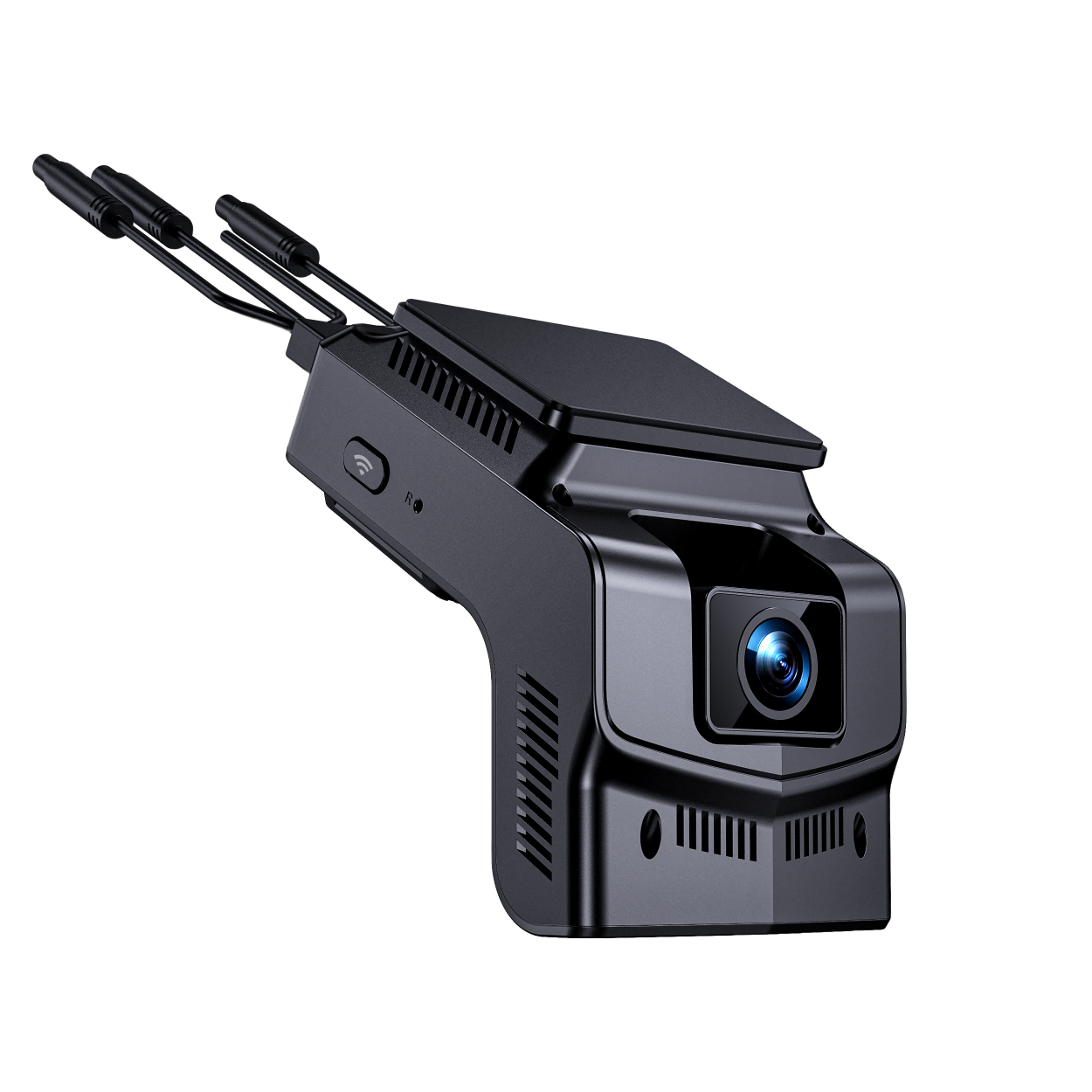

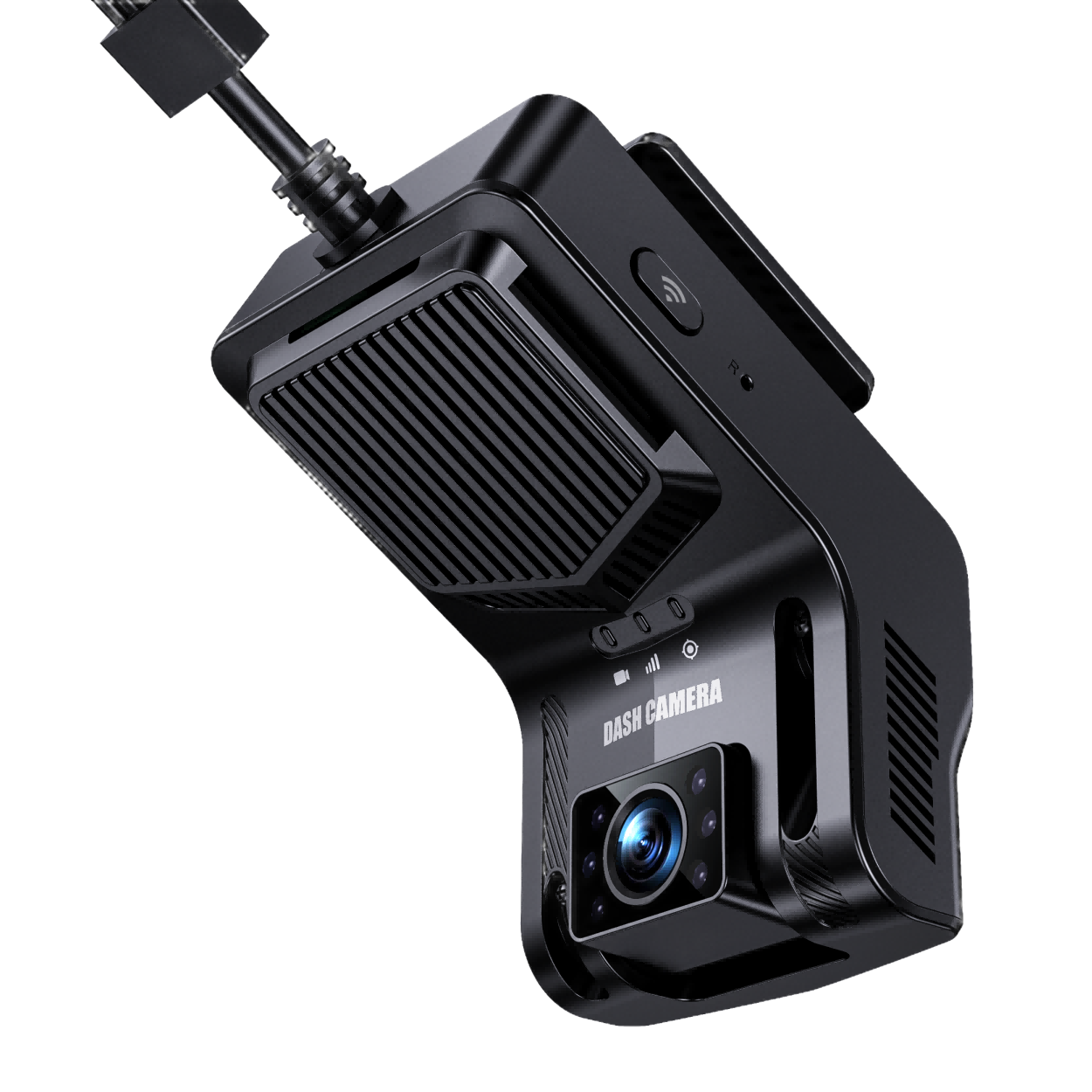

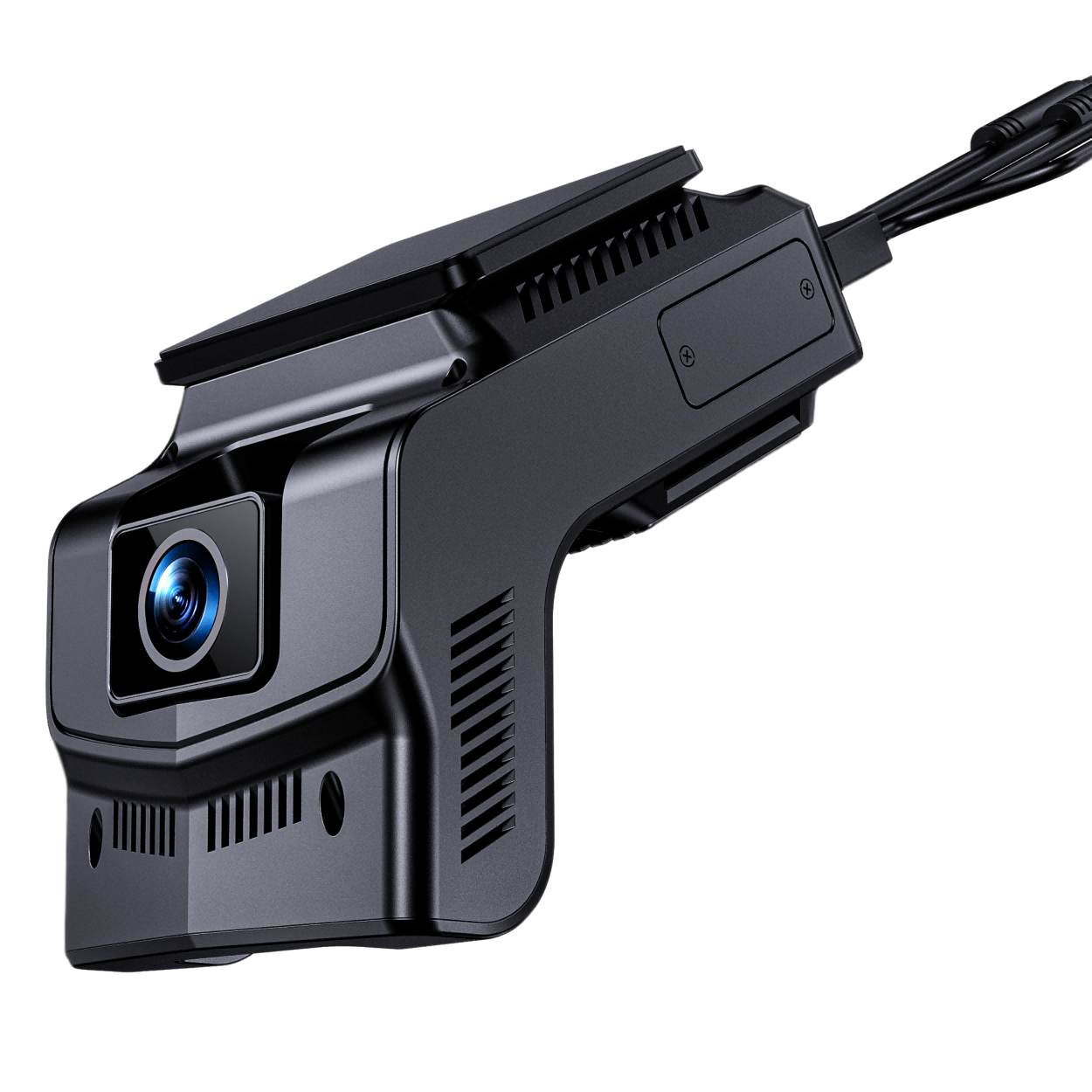

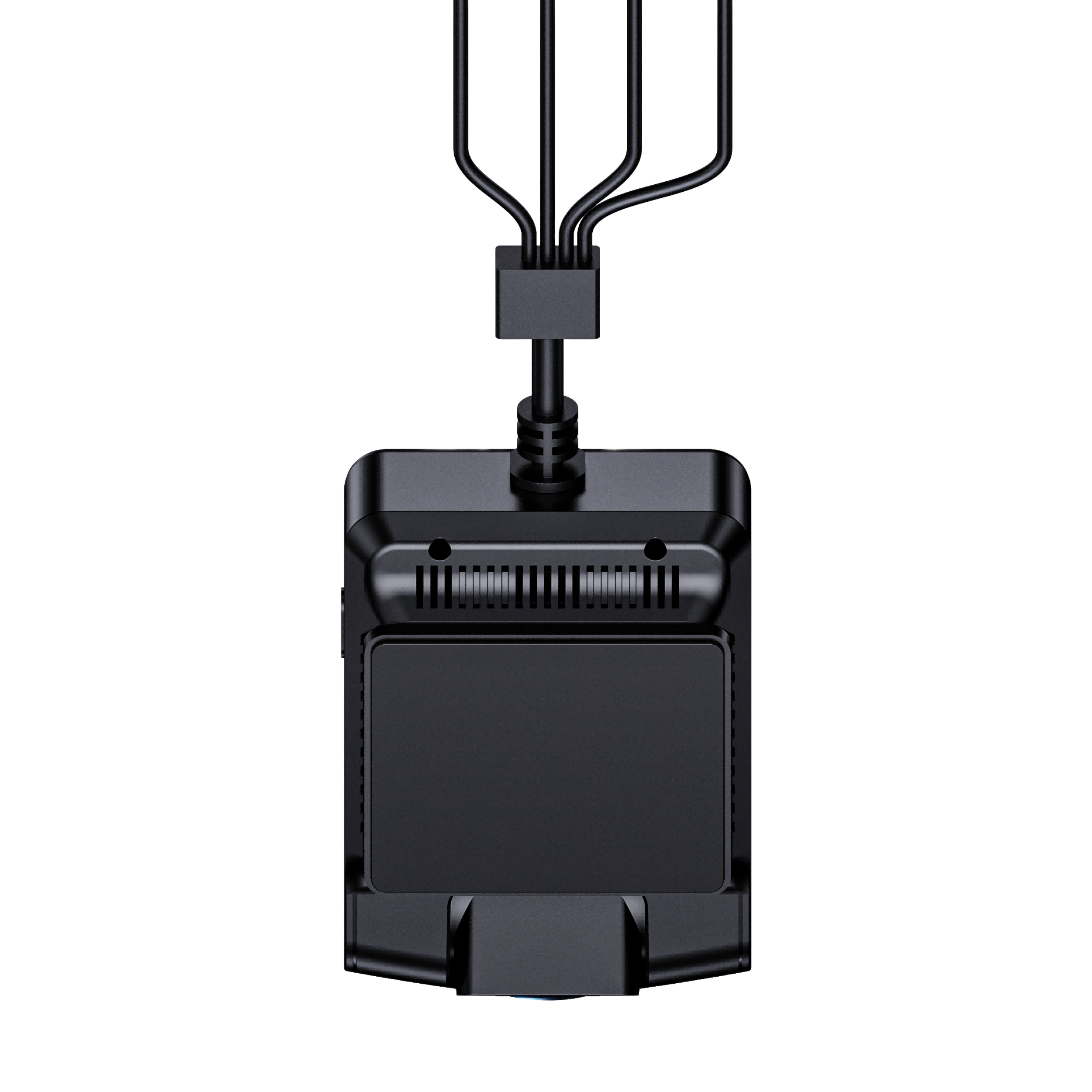

Product illustration

Hardware Specifications

project		parameter
system	Operating language	Chinese/English
	operating system	Linux
	User interface	Supports both APP and web interface.
	GUI	none;
Processor and CPU	CPU	Dual-Core processor@1.2GHz , 0.5T NPU
	Memory	Embedded 1Gb DDR3L
	Flash	128Mb NAND Flash
Video and recording system	Video input	Front-facing camera : 2MP , field of view : D=135° H=120° V=63°, aperture : f/1.8 , resolution : 1920 x 1080, frame rate : 25 , bitrate : 4 Mbps In-vehicle camera : 2MP , field of view : D=128° H=110° V=60°, aperture : f / 1.8 , resolution : 1920 x 1080, frame rate : 25, storage bitrate : 2 Mbps , night vision infrared: yes, automatic light sensor switching .
	Video input	Extend one AHD 1080P 30 fps output (motherboard reserved)
	Video Standards	PAL and NTSC standards
	Video compression format	H.264 compression format
	Preview function	APP single-channel preview
	Video quality	Main stream Resolution: 19201080 1280720 Frame rate: 1-25 frames Bitrate: 256Kbps ~ 6Mbps Sub-stream Resolution: 720576, 720480, 640*360 Frame rate: 1-15 frames Bitrate: 256Kbps ~ 2Mbps
	Recording method	Automatic recording is enabled by default, and it supports ignition recording, alarm recording , and time-lapse recording .
audio	Audio input	1 audio input, CH1/CH2 built-in microphone
	Audio output	1 channel, built-in speaker (≤8 Ω 1.5 W)
	Compression format	AAC/ G.711A compression format
	Recording method	Simultaneous recording of audio and video
Alarm input		Two alarm input channels (not included by default, reserved on the motherboard)
Alarm output		1-channel low-level output (supports remote fuel and power cut-off function, can be connected to a relay) Optional
Communication interface		One RS232 interface, expandable with card readers, fuel level sensors, etc. (not included by default, reserved on the motherboard).
wireless transmission		It can be equipped with built-in 4G wireless transmission function, supports voice calls, low power heartbeat maintenance , TDD-LTE, FDD-LTE (supports CAT1 and CAT4) (EC 200 A - EU / AU series supports voice calls, others do not support them yet ) cat1 band: EC800-CN China/India: LTE-FDD B1/ 3/ 5/ 8 LTE-TDD B34/ 38/ 39/ 40/ 41 EG800K-EU Europe/New Zealand/Australia: LTE-FDD B1/ 3/ 5/ 7/ 8/ 20/ 28 EG800K-LA Latin America: LTE-FDD B2/ 3/ 4/ 5/ 7/ 8/ 28/ 66
wireless transmission		WIFI: 802.11b/g/n 2.4G (built-in antenna)
GPS positioning		Supports built-in GPS/BD module
sensor		Built-in 3-axis accelerometer
disk	TF card	Maximum support 512G
	Upgrade method	Supports TF card upgrades and FTP remote automatic upgrades.
	Storage method	TS file format
	SIM card interface	One SIM card slot ( micro SIM )
AI algorithms	ADAS	Forward collision detection, lane departure detection, pedestrian recognition , and distance detection, etc.
	DSM	Fatigue driving detection, smoking, detection of unsafe driving behaviors such as obscuring the driver's face , and facial recognition.
	BSD	Front blind spot, rear blind spot, left blind spot, and right blind spot detection ( not included in standard configuration; requires an external camera ).
Power supply and power consumption	Power Management	It features adaptive wide-range power input and protection functions such as overload, undervoltage, short circuit, and reverse connection; it also supports timed power on/off and delayed power off functions.
	Input voltage	DC: +9V ~ +36V
	Output voltage	5.3V@300MA ( standard configuration does not include this )
	Power failure protection	Optional 5F / 3.3V capacitor to support abnormal power failure and ensure the integrity of video files .
	Power consumption	Normal operating conditions < 2 W (without peripherals)
Work environment	temperature	-20℃ to +70℃
Work environment	humidity	10% to 90%
Safety Management	Password access	Webpage menu under development
Platform Access		JT/T808-2013 , JT/T808-2019
Platform Access		JT/T1076-2016, JT/T1078-2016

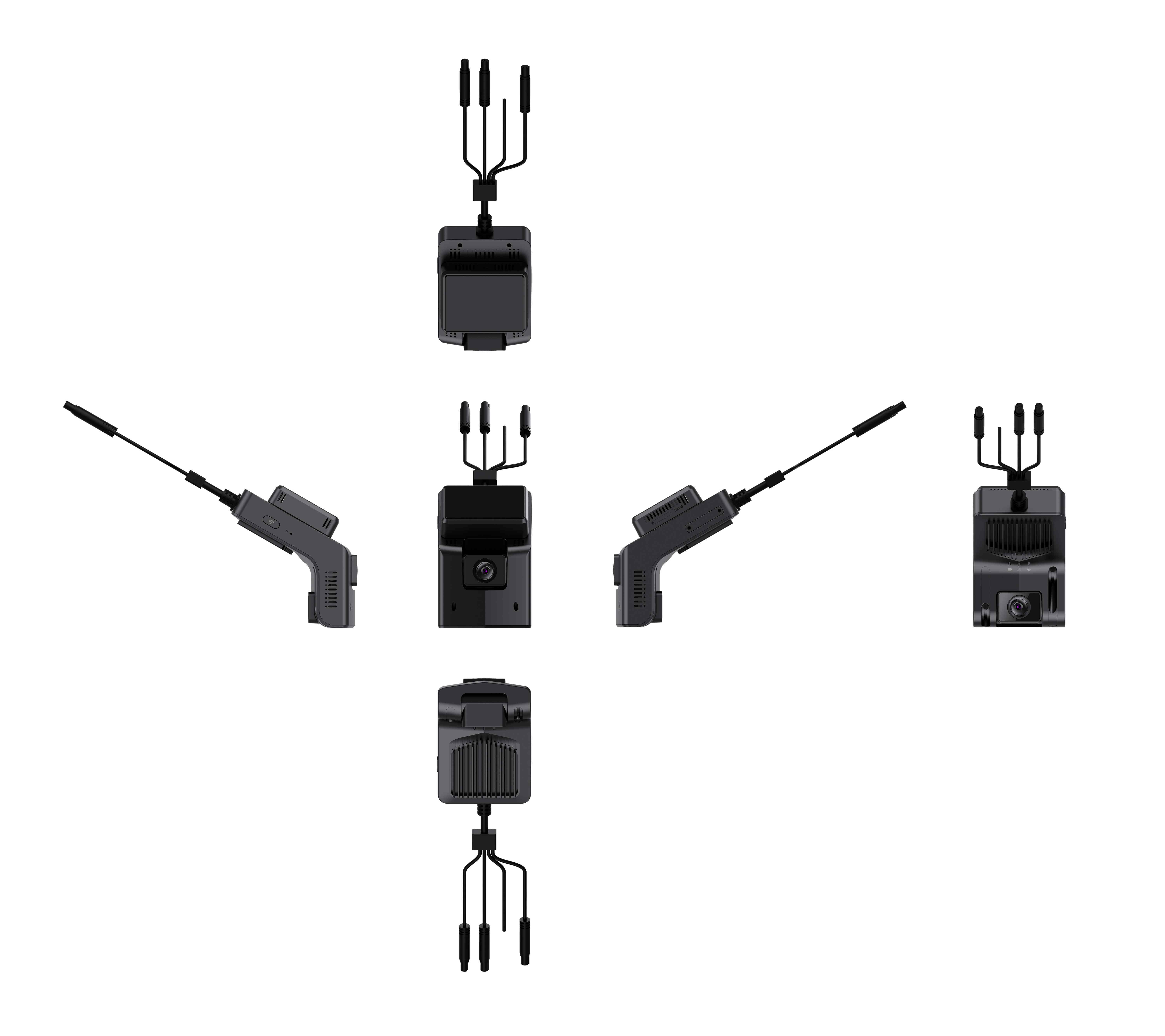

External dimensions
net weight

Equipment Function Overview

Product Advantages & Features

The product features highly integrated functions, including a built-in GPS antenna, 4G antenna, and dual 1080P cameras, making installation more convenient.
It has built-in ADAS and DMS algorithms. The DMS camera has an ultra-wide 110° angle and can perform in-vehicle monitoring, behavioral driving analysis, and local face recognition comparison.
LINUX system;
Supports 4G network connectivity and satellite positioning;
Supports dual-channel 1080P video recording (front and interior of the vehicle).
Supports 808/905+1078 departmental standard protocols;
It supports functions such as real-time video, historical video playback, emergency alarm, and TTS text message delivery;
Supports AI algorithms such as ADAS/DMS facial recognition;
It can support up to dual-channel 1080P recording (the version with algorithm supports dual-channel 720P).
Supports rapid acceleration/rapid deceleration/sharp turn alarms and collision alarms.
With ACC OFF enabled, a low-power sleep mode is available, allowing for remote wake-up.
Voice support for two-way communication/listening
Supports dual IP reporting

Product Function Introduction

Function		Function Description
Location function	Location report	Regular reporting
recorder	Video	Local video recording
Call the police	Speeding warning	The vehicle speed is less than the maximum speed and meets the overspeed warning threshold.
	Overspeed alarm	Vehicle speed greater than maximum speed
	Emergency alarm	Trigger the emergency alarm button
	Manual confirmation of alarm	support
Parameter query	Query terminal properties	Terminal parameters, including online IP address, port, etc.
Parameter settings	Set terminal parameters	Terminal attributes include terminal type, terminal model, etc.
upgrade	Remote upgrade (8108)	support
	Text message distribution	Setting command parameters includes FTP remote upgrades, modifying parameters, etc.
multimedia	Take a picture immediately	Remote image capture
	Multimedia Upload	support
	Multimedia Search	support
audio and video	Real-time video	support
	Video playback	support
	Audio and video download	support
	intercom	support
	monitor	support
	Electronic fence setup	support
