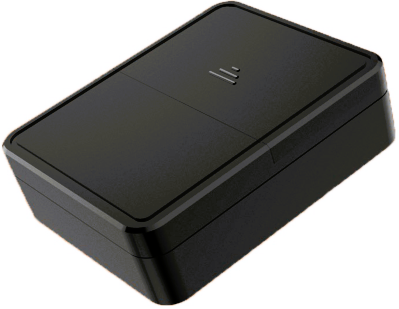

GPS Tracker ES600HC04

Features

4G Connectivity

Supports 4G single-network, multi-band LTE compatible with Southeast Asia, Africa, South America 4G/2G+4G networks

Location Tracking

GPS+BDS dual-mode positioning, GPS positioning accuracy ＜10m

Playback and Download

Supports historical route playback and GPRS data upload, suitable for fleet management

Fast Start

GPS cold start positioning in 33s, fast positioning response

Alarms

Supports vibration alarm, power-off alarm and overspeed alarm for real-time abnormal alerts, light sensor anti-removal alarm

Parameters Setting

Supports custom parameter setting and third-party inspection function

Battery

Built-in 5000mAh lithium battery, battery life about 30-40 days, supports recharge and re-installation

Power Supply

DC 3.7V working voltage with stable power supply

Certificate

Certified by CE, FCC, Rohs, Reach and intertek

Customization

Supports LOGO customization for personalized needs

Communication Protocol

Supports GPRS communication protocol for stable data upload

Specification parameters

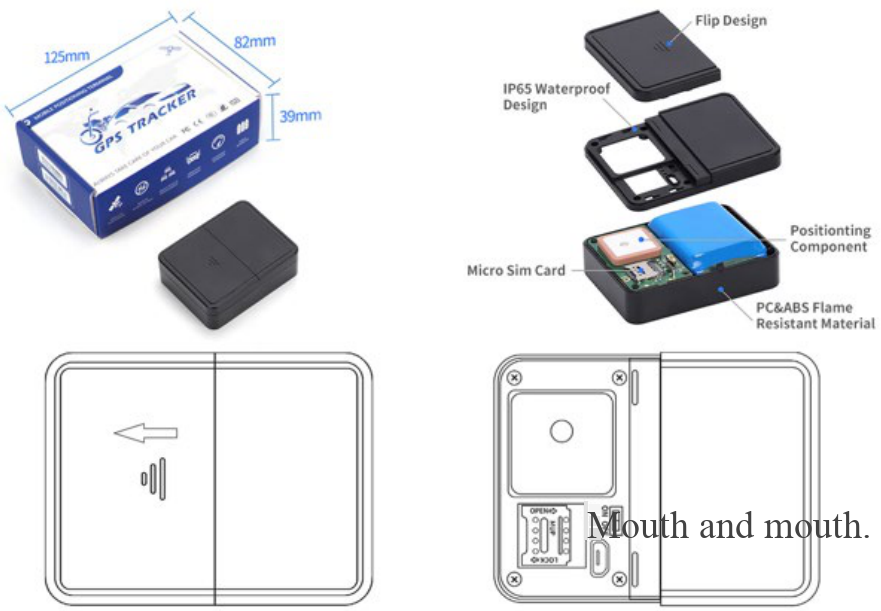

Size

79(L)*61(W)*25.5(H)mm

Weight

170g

Operating temperature

-25~+-80℃

Built-in battery

5000mAh

working voltage

3.7V DC

Hardware specifications

Positioning accuracy

GPS<10m

GSM frequency band

Luat AIR78OET

LTE:B1/B3/B5/B8/B34/B38/B39/B40/B41

Luat AIR78OELU

LTE:B1/83/B5/B8/B20/B28

Luat AIR78OELN

LTE B2/84/B5/B12/813/B66/B71

(Mainly supports Southeast Asia 4G, Southeast Asia 2G+4G, Africa 2G,Africa 2G+4G, South America 4G, South America 2G+4G)

GSM antenna

BD&GPS dual-mode ceramic antenna

Communication four band antenna

Communication chip

Mici EC716S

Positioning chip

CCI161W

GPS sensitivity

-148dBm

Tracking sensitivity

-165dBm

Positioning time

Cold start 33s

Software Specification Description

Parameter settings

support

Third-party inspection

support

GPRS upload

support

Overspeed alarm

support

Flee management

support

Historical route

support
