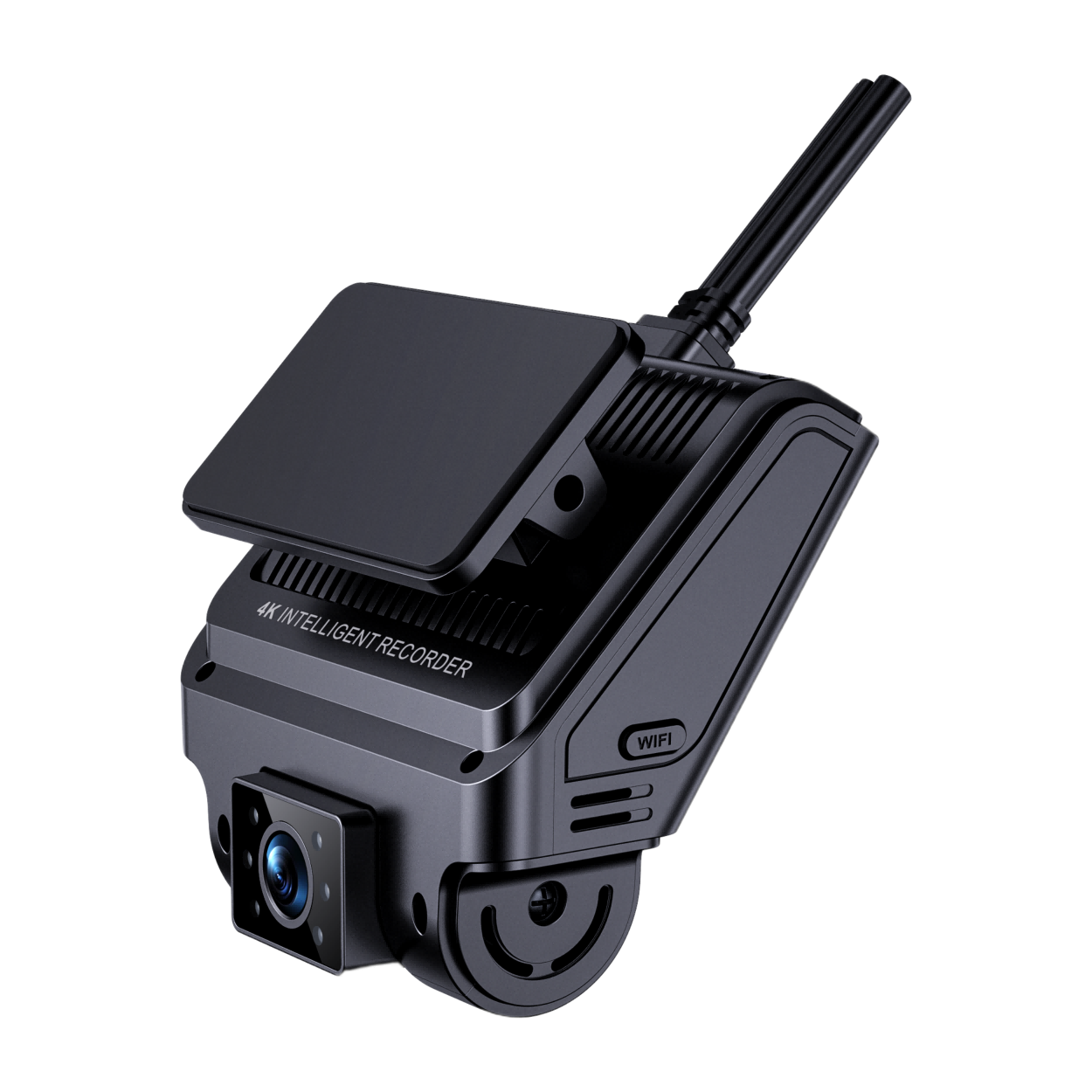

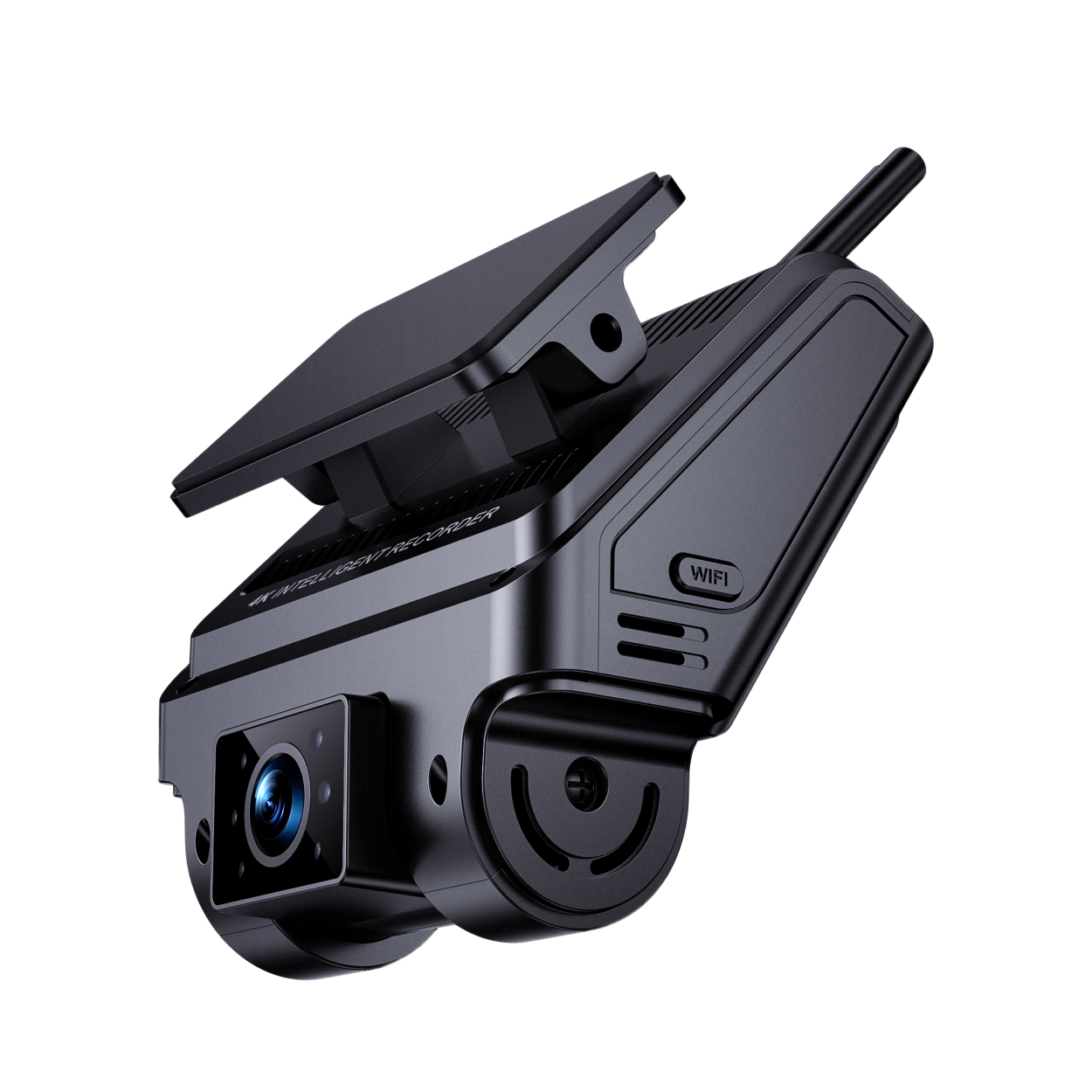

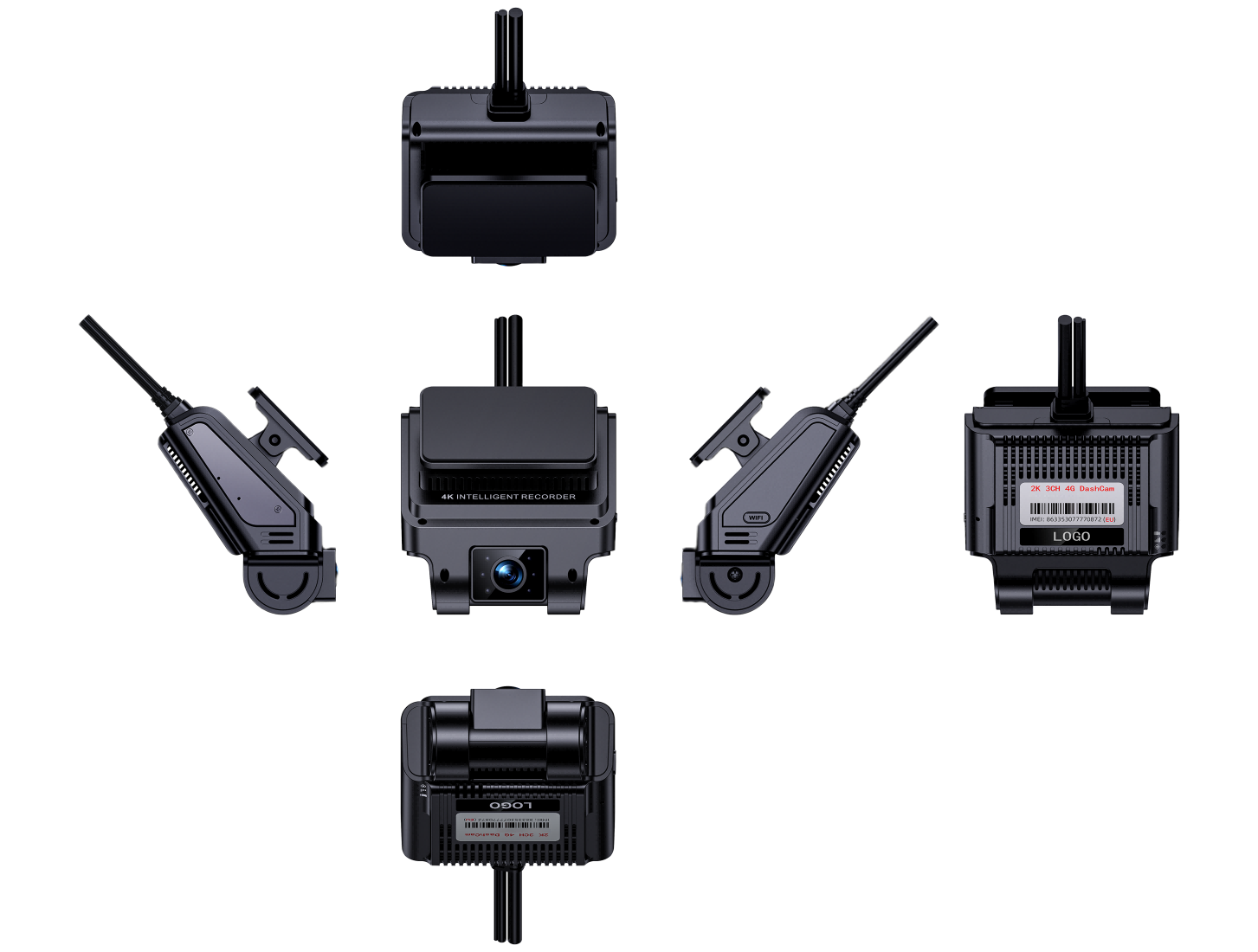

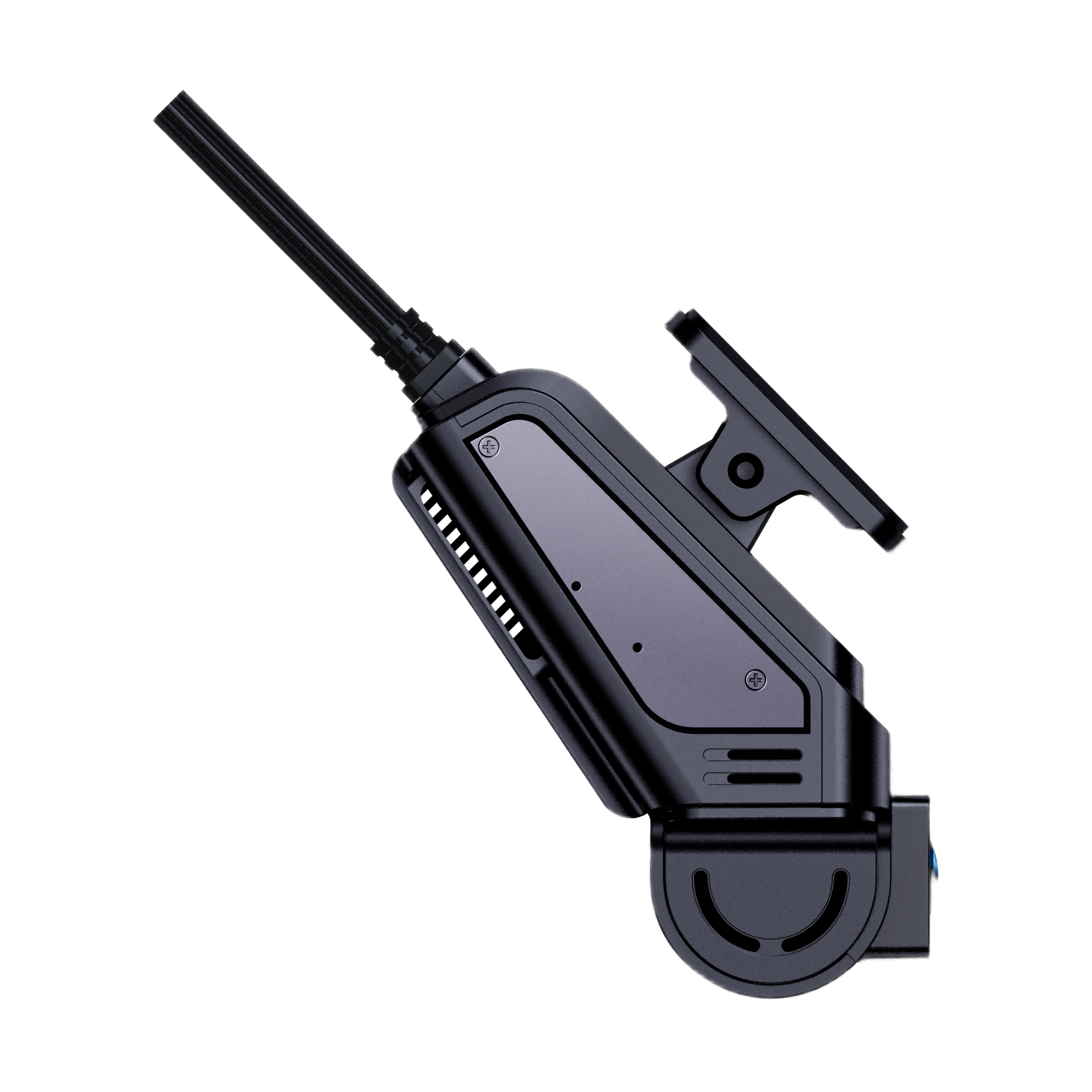

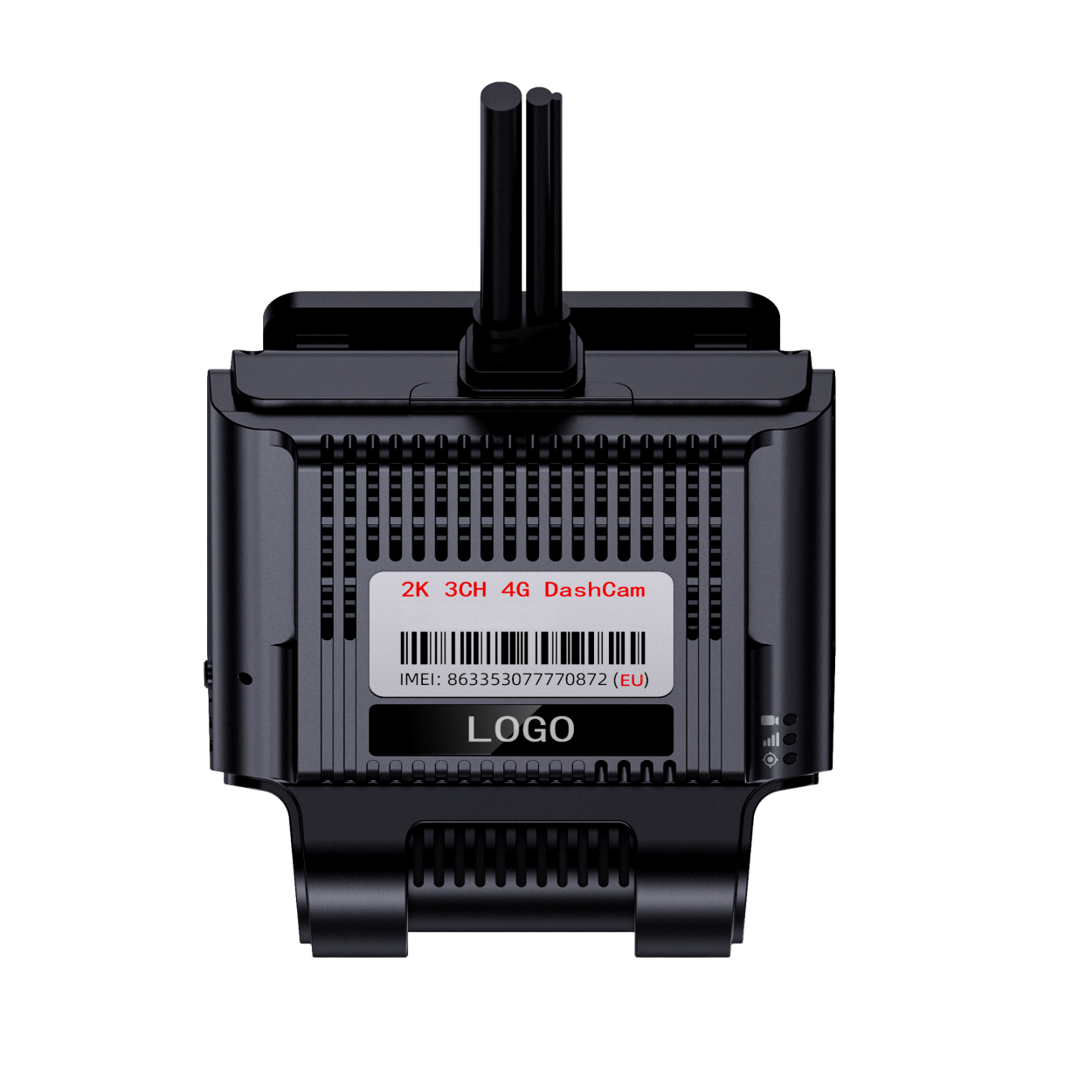

AI Dash Cam ES500-301

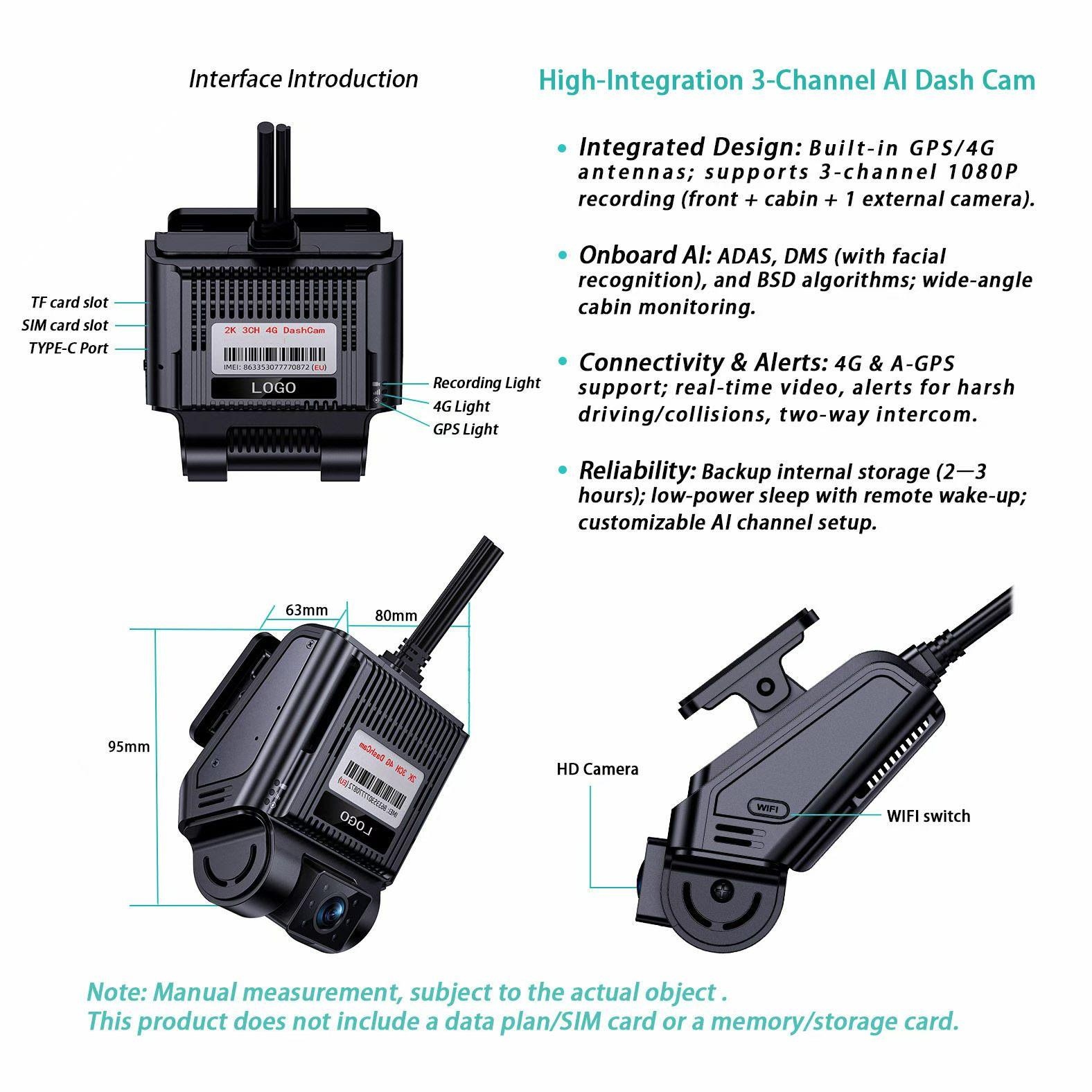

The ES500-301 is a comprehensive automotive active safety product that integrates satellite positioning, video surveillance, active safety, and other functions. It meets the needs of fleet monitoring, management, driving safety, and driving behavior standardization. Based on advanced deep learning technology, active safety functions such as Advanced Driver Assistance Systems (ADAS), Driver Monitoring Systems (DMS), face recognition (FACEID), Blind Spot Detection (BSD), and other intelligent algorithms can be applied to complex driving scenarios, improving traffic safety and efficiency, and enhancing the overall user experience. The integration of AI technology into the driving process further helps regulate safe driving behavior.

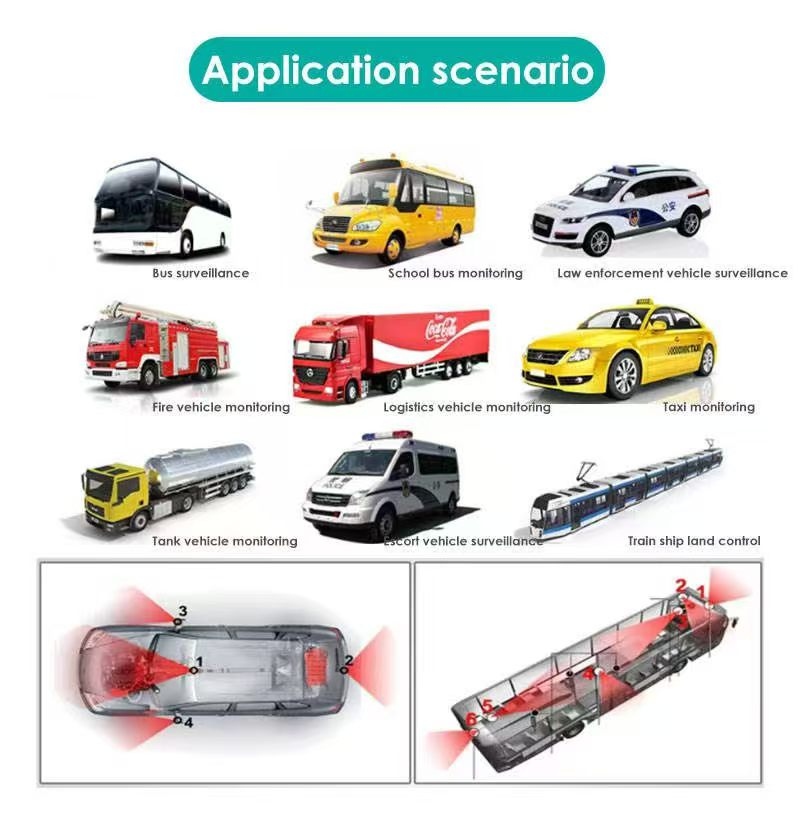

This product supports industry standard protocols such as JT/T808, JT/T905, and JT/T1078, meeting the video surveillance management and driving behavior standardization needs of ride‑hailing vehicles, taxis, and logistics fleets.

Product Consulting

A^-A⁺

Product Overview Product Consulting

Features
4G Connectivity	Built-in 4G wireless transmission, support CAT1/CAT4, TDD-LTE/FDD-LTE, support voice calls; built-in 2.4G Wi-Fi 802.11b/g/n
Video Recording	Support 3-channel video input, H.264 compression, auto/ignition/alarm/time-lapse recording, max 512GB TF card
Audio Recording	1-channel MIC input, 1-channel speaker output, AAC/G.711A encoding, audio-video synchronous recording
Location Tracking	Built-in GPS/BD dual-mode positioning, support AGPS, regular location reporting

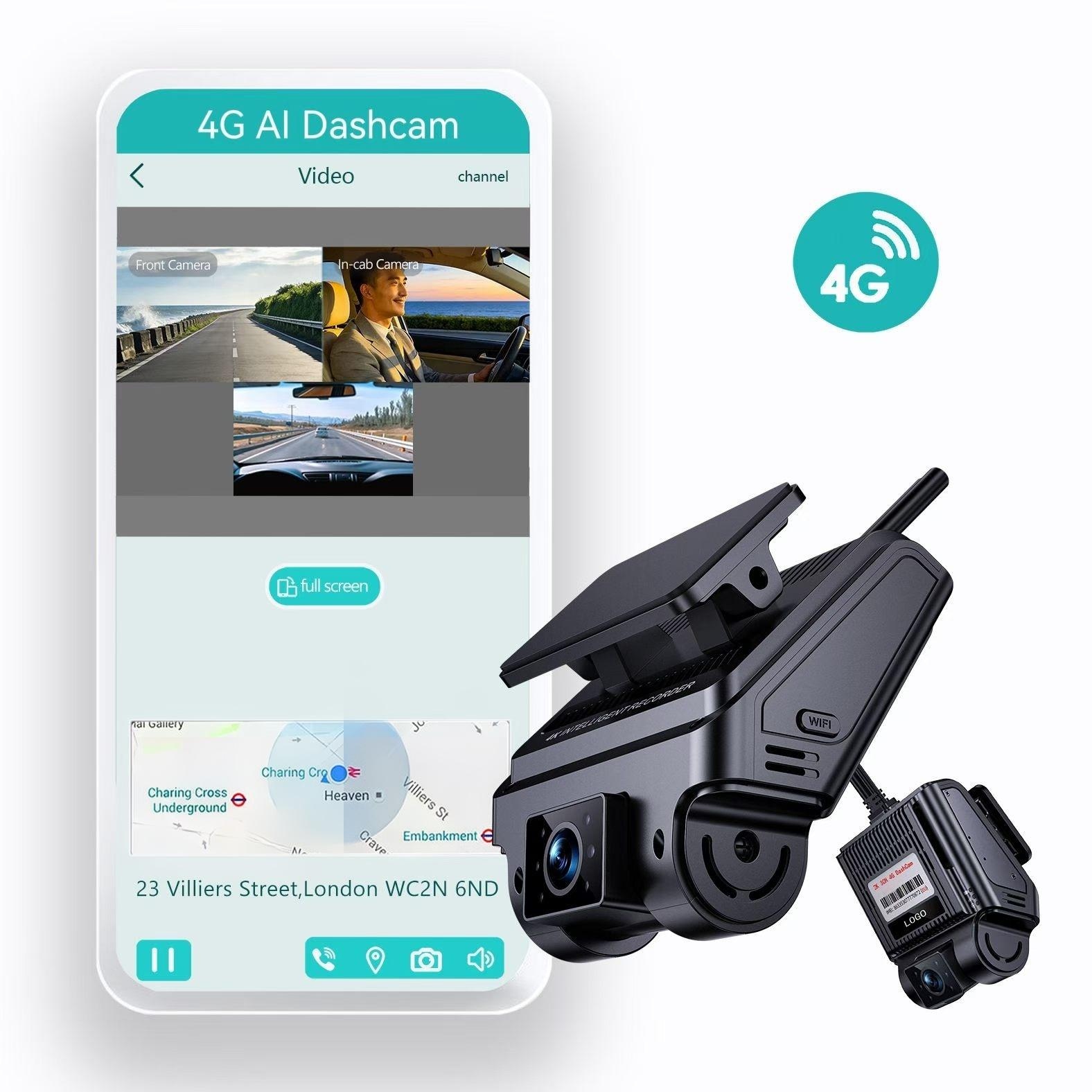

Playback and Download	Support real-time preview, history playback, audio-video download, multimedia retrieval
Safety Driving	ADAS + DMS + face recognition + BSD; detect collision, lane departure, fatigue, phone use, smoking
Fast Start	9–36V wide voltage input, power-on startup; support ACC power-on, timed/delayed shutdown

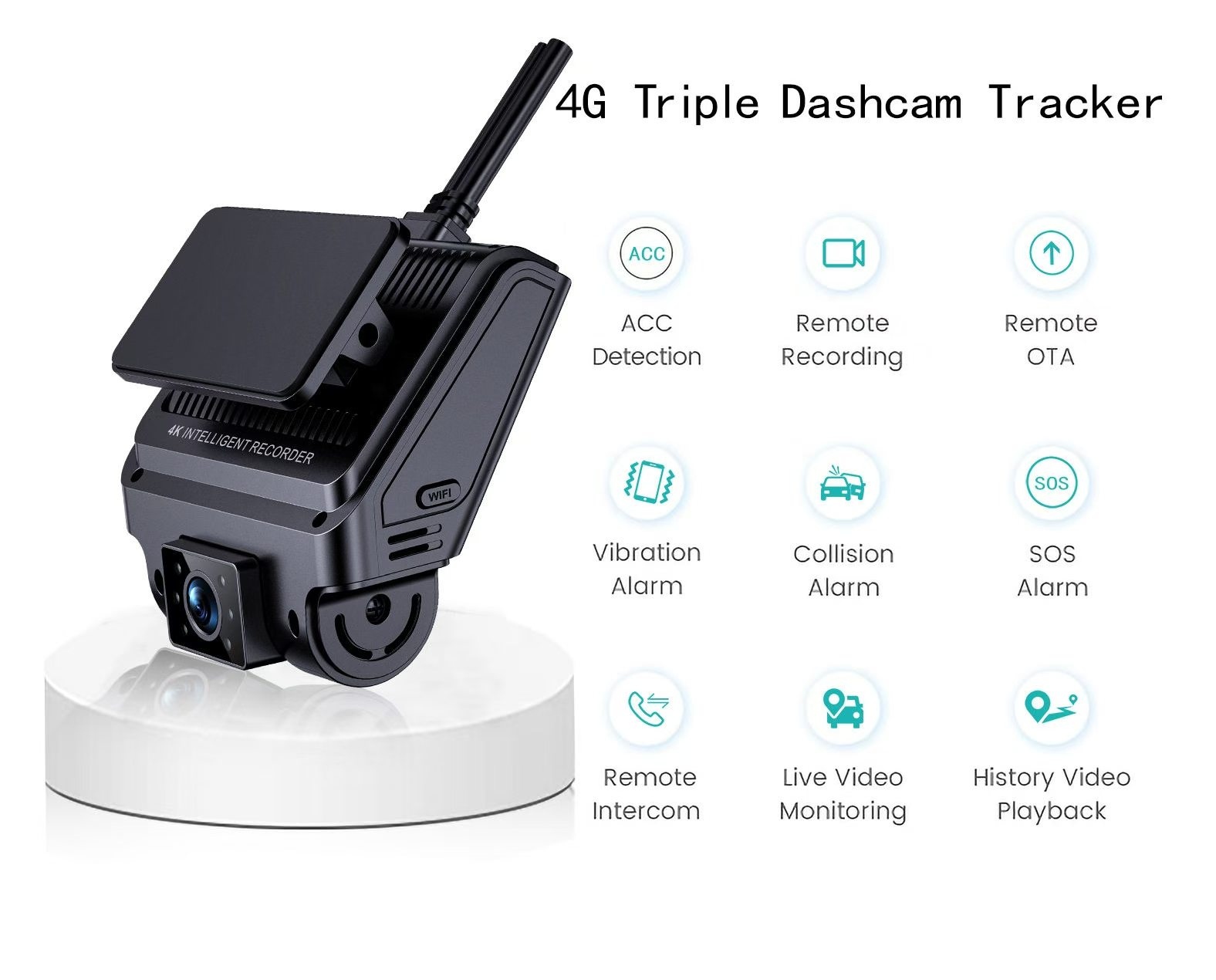

Alarms	SOS alarm, over-speed alarm, collision alarm, sharp acceleration/deceleration alarm, fault alarm
Parameters Setting	Connect via Wi-Fi hotspot; configure at 192.168.169.1/set; set device ID, protocol, AI parameters
Remote Upgrading	Support FTP remote auto-upgrade and TF card local upgrade
Communication Protocol	JT/T808, JT/T905, JT/T1078

Model
Name	ES500-301 Dashcam
Accessories	ES500-301 dashcam T-card baffle Small baffle screws*2 SIM card tray Power cable SOS button
System
CPU	32-bit RISC CPU 1.0 GHz，1T NPU
Operating Language	Chinese/English
Operation System	Linux

Processor

Memory	External 4Gb DDR3
Flash	8GB EMMC

Camera & Audio

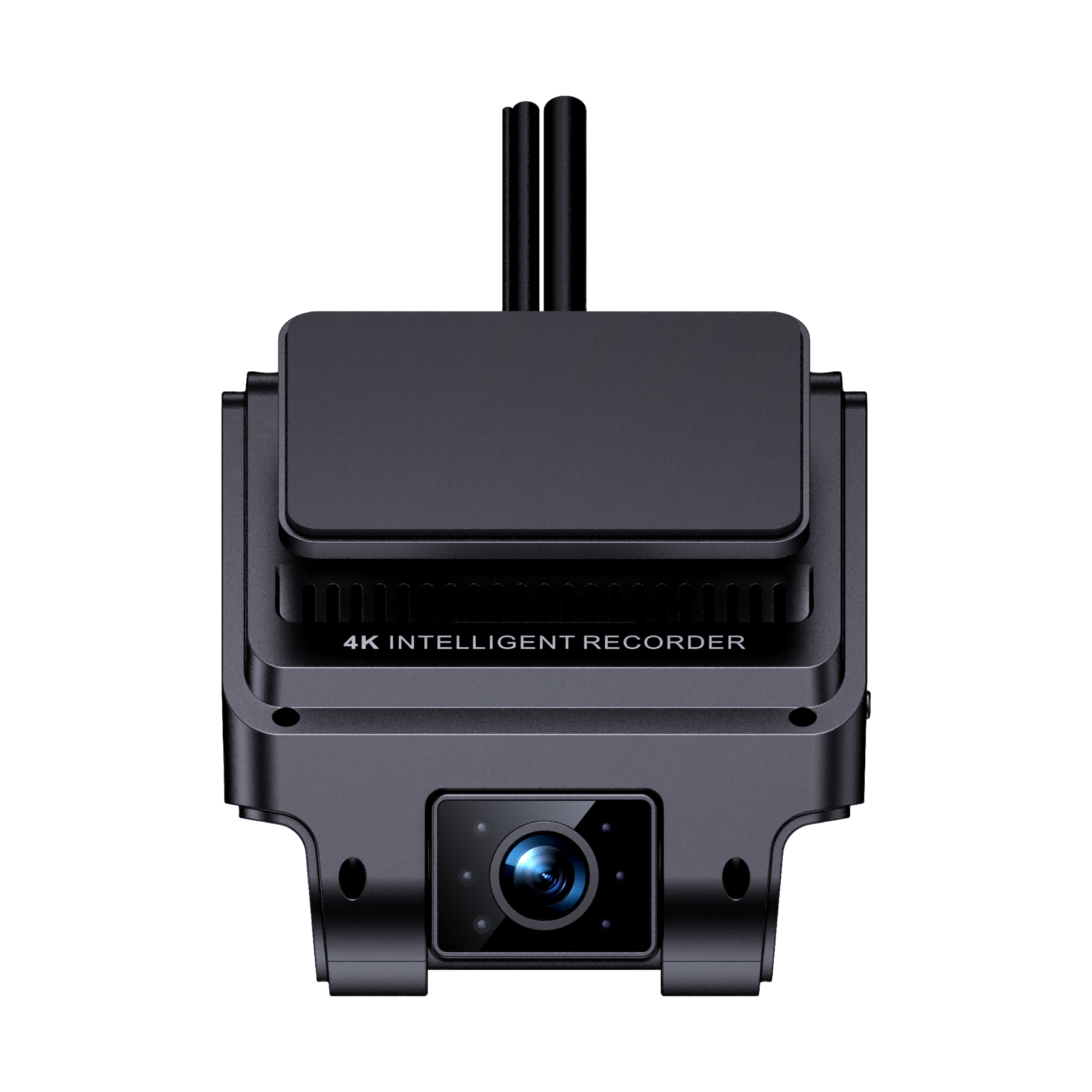

Video Input	Front camera: 4MP, FOV: D=123°, H=102°, V=53°, Aperture: f/1.8, Resolution: 2560×1440, Frame rate: 25fps, Storage bitrate: 4Mbps 2-channel expansion: AHD 1080P/720P 25fps
Video Standard	PAL system, NTSC system
Video Compression Format	H.264 compression format
Preview Function	APP single-channel preview
Recording Quality	·Main Stream Resolution: 2560×1440, 1920×1080, 1280×720 Frame Rate: 1-25fps Bitrate: 256Kbps ~ 6Mbps ·Sub Stream Resolution: 720×576, 720×480, 640×360 Frame Rate: 1-15fps Bitrate: 256Kbps ~ 2Mbps
Recording Mode	Default auto recording, supports ignition recording, alarm recording, time-lapse recording, etc.
Internal Storage	Built-in 8GB internal storage, 6.5GB available data backup storage space, 2-3 hours of data recording without TF card
Audio Input	1-channel audio input, CH1/CH2/CH3 all use built-in MIC
Audio Output	1-channel, built-in speaker (≤8Ω 1.5W)
Audio Compression Format	AAC/G.711A compression format
Recording Method	Synchronous audio and video recording
GNSS
GNSS	GPS, BEIDOU
Wireles Transmission
4G	Built-in 4G wireless transmission, supports voice call, low-power heartbeat keep-alive, TDD-LTE, FDD-LTE (supports CAT1 and CAT4) (EC200A-EU/AU series supports voice call, others do not support temporarily)
CAT1 Bands	EC800K-CN (China/India): LTE-FDD: B1/3/5/8 LTE-TDD: B34/38/39/40/41 EG800K-EU (Europe/New Zealand/Australia): LTE-FDD: B1/3/5/7/8/20/28 EG800K-LA (Latin America): LTE-FDD: B2/3/4/5/7/8/28/66
Wi-Fi	802.11b/g/n, 2.4G (antenna built-in)
Disk
TF Card	Max support 512GB
Upgrade Method	Support TF card upgrade, FTP remote automatic upgrade
Storage Format	TS file format
SIM Card Interface	1 SIM card interface (Micro SIM)
AI Algorithm
ADAS	Forward collision warning, lane departure warning, pedestrian detection, vehicle distance detection, etc.
DSM	Fatigue driving detection, smoking detection, occlusion detection for unsafe driving behaviors, face recognition
BSD	Front blind spot, rear blind spot, left blind spot, right blind spot detection (not included in standard configuration, requires external camera)

Operating Environment
Power-off Protection	Optional 1×5F/3.3V farad capacitor, supports abnormal power-off to ensure the integrity of recording files
Power Management	Adaptive wide-range power input, with overload, undervoltage, short circuit, reverse connection and other protection functions; supports timed on/off and delayed shutdown functions.
Input Voltage	DC: +9V ~ +36V
Output Voltage	5.3V@300mA (not included in standard configuration, mass production version will be changed to 12V output)
Power Consumption	< 2W in normal working state (without peripherals)
Temperature	-20℃ to +70℃
Humidity	10% to 90%

Interface
Interface	1-channel RS232 interface, can expand card reader, fuel level sensor, etc.
Alarm Input	2-channel alarm input (not included with main board default)
Alarm Output	1-channel low-level output (supports remote power-off function, can be connected to relay)
Sensor	Built-in 3-axis accelerometer
Platform Access	JT/T 808-2013, JT/T 808-2016 JT/T 1076-2016-2013, JT/T 1078-2016
